LTC3523EUD-2#PBF

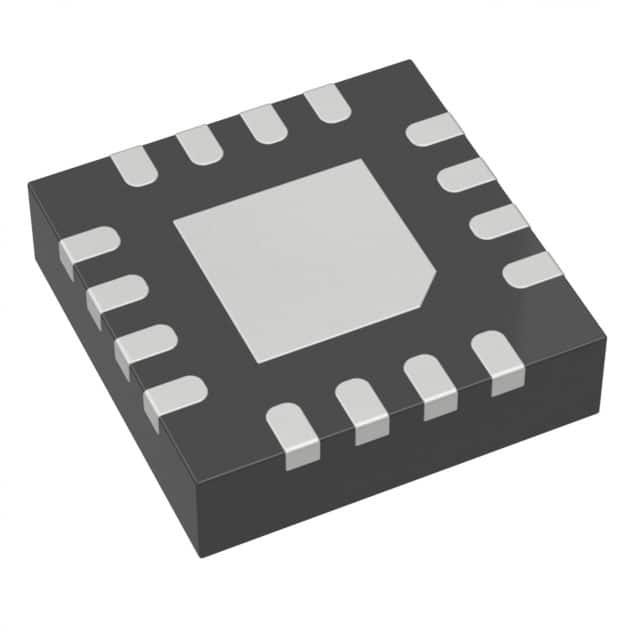

IC REG BUCK BST ADJ DL 16QFNManufacturer: Analog Devices Inc.
Categories: DC DC Switching Regulators
Quality Control: Learn More
The Analog Devices Inc. LTC3523EUD-2-PBF is a dual, synchronous buck-boost switching regulator. This versatile component integrates two independent regulators, each capable of delivering 400mA and 600mA (switch current) respectively, from a single IC. Operating with an input voltage range of 1.8V to 5.5V, it supports adjustable positive output voltages from 0.615V up to 5.5V. The device features a high switching frequency of 2.4MHz, enabling the use of small external components and contributing to efficient power conversion. Its buck-boost topology allows it to regulate output voltages that are higher, lower, or equal to the input voltage. The LTC3523EUD-2-PBF is supplied in a 16-lead 3x3mm QFN package with an exposed pad for improved thermal performance, suitable for surface mount applications. This component finds application in portable electronics, battery-powered devices, and power management systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 26 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 16-WFQFN Exposed Pad |
| Output Type | Adjustable |
| Mounting Type | Surface Mount |
| Number of Outputs | 2 |
| Function | Step-Up, Step-Down |
| Current - Output | 400mA, 600mA (Switch) |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Output Configuration | Positive |
| Frequency - Switching | 2.4MHz |
| Voltage - Input (Max) | 5.5V |
| Topology | Buck, Boost |
| Supplier Device Package | 16-QFN (3x3) |
| Synchronous Rectifier | Yes |
| Voltage - Output (Max) | 5.5V |
| Voltage - Input (Min) | 1.8V |
| Voltage - Output (Min/Fixed) | 0.615V |
