LTC3371IUHF#TRPBF
IC REG BUCK ADJ 2A QUAD 38QFNManufacturer: Analog Devices Inc.
Categories: DC DC Switching Regulators
Quality Control: Learn More

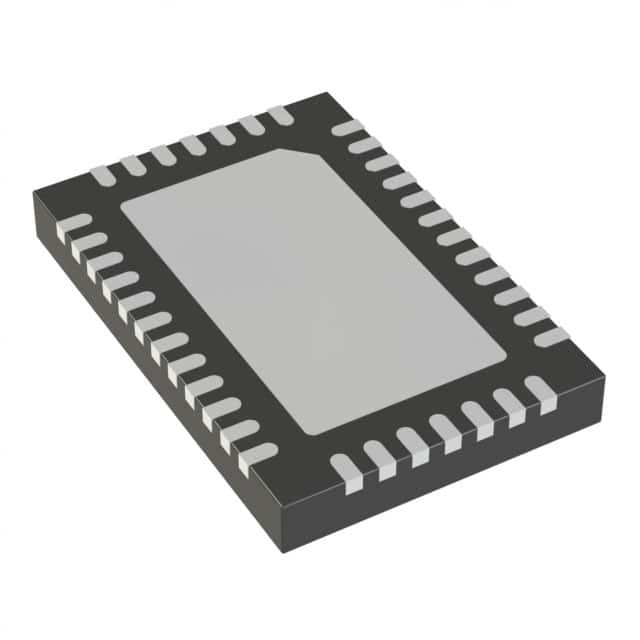

The Analog Devices Inc. LTC3371IUHF-TRPBF is a quad, synchronous buck switching regulator designed for high-efficiency power conversion. This adjustable output device offers four independent 2A output channels, each capable of stepping down input voltages from 2.7V to 5.5V to a programmable output voltage as low as 0.8V. With a high switching frequency of 2MHz, it enables the use of small external components, contributing to a compact solution in a 38-WFQFN Exposed Pad package. The LTC3371IUHF-TRPBF features internal switches and synchronous rectification for enhanced efficiency, operating across an ambient temperature range of -40°C to 125°C. This component is suitable for applications in automotive, industrial, and telecommunications sectors demanding robust and efficient power regulation.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 38-WFQFN Exposed Pad |
| Output Type | Adjustable |
| Mounting Type | Surface Mount |
| Number of Outputs | 4 |
| Function | Step-Down |
| Current - Output | 2A |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Output Configuration | Positive |
| Frequency - Switching | 2MHz |
| Voltage - Input (Max) | 5.5V |
| Topology | Buck |
| Supplier Device Package | 38-QFN (5x7) |
| Synchronous Rectifier | Yes |
| Voltage - Output (Max) | 5.5V |
| Voltage - Input (Min) | 2.7V |
| Voltage - Output (Min/Fixed) | 0.8V |
