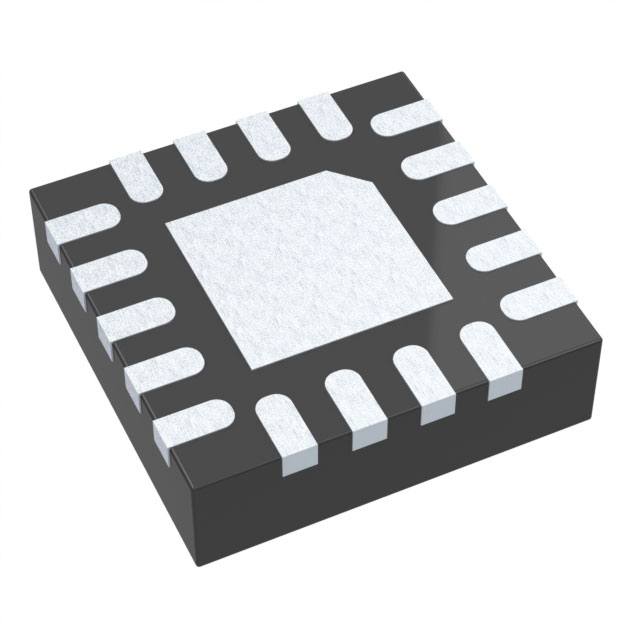

LTC3311SIV#PBF
IC REG BUCK ADJ 12.5A 18LQFNManufacturer: Analog Devices Inc.
Categories: DC DC Switching Regulators
Quality Control: Learn More
Analog Devices Inc. presents the LTC3311SIV-PBF, a Silent Switcher®2 series step-down switching regulator. This component features a 12.5A output current capability and operates with a switching frequency of 2MHz. Designed for surface mount applications, it offers a single positive adjustable output with a minimum voltage of 0.5V and a maximum output voltage of 5.5V. The input voltage range is from 2.25V to 5.5V. This synchronous buck regulator is housed in an 18-TFQFN Exposed Pad package. Its advanced design is suitable for demanding applications across automotive, industrial, and telecommunications sectors.
Additional Information
Series: Silent Switcher®2RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 18-TFQFN Exposed Pad |
| Output Type | Adjustable |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Function | Step-Down |
| Current - Output | 12.5A |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Output Configuration | Positive |
| Frequency - Switching | 2MHz |
| Voltage - Input (Max) | 5.5V |
| Topology | Buck |
| Supplier Device Package | 18-LQFN (3x3) |
| Synchronous Rectifier | Yes |
| Voltage - Output (Max) | 5.5V |
| Voltage - Input (Min) | 2.25V |
| Voltage - Output (Min/Fixed) | 0.5V |
