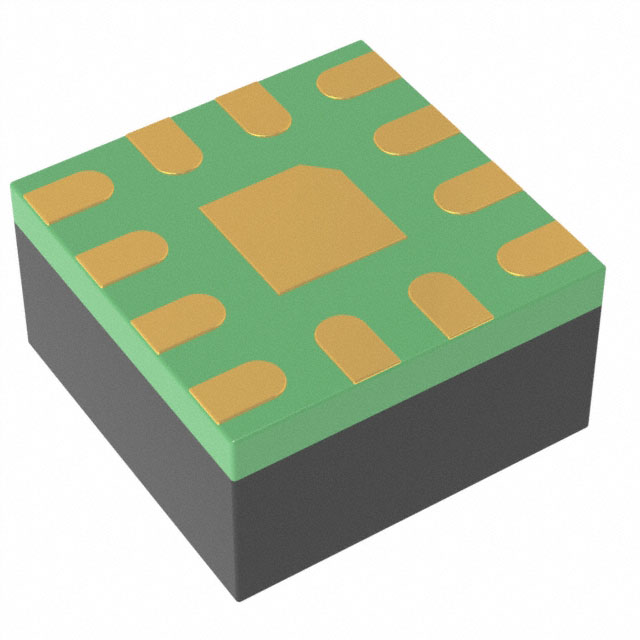

LTC3309AEV#TRPBF
IC REG BUCK PROG 6A 12LQFNManufacturer: Analog Devices Inc.
Categories: DC DC Switching Regulators
Quality Control: Learn More
The Analog Devices Inc. LTC3309AEV-TRPBF is a high-performance buck switching regulator designed for efficient power conversion. This component features a Silent Switcher®1 topology, enabling low electromagnetic interference (EMI) operation up to 3MHz switching frequency. It provides a programmable positive output voltage ranging from 0.5V to 2.25V, capable of delivering up to 6A of output current. The device operates from a 2.25V to 5.5V input voltage range and is housed in a 12-VFQFN exposed pad package. Its integrated synchronous rectifier further enhances efficiency. This versatile regulator is suitable for applications in automotive, industrial, and telecommunications sectors.
Additional Information
Series: Silent Switcher®1RoHS Status: ROHS3 CompliantManufacturer Lead Time: 20 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 12-VFQFN Exposed Pad |
| Output Type | Programmable |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Function | Step-Down |
| Current - Output | 6A |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Output Configuration | Positive |
| Frequency - Switching | Up to 3MHz |
| Voltage - Input (Max) | 5.5V |
| Topology | Buck |
| Supplier Device Package | 12-LQFN (2x2) |
| Synchronous Rectifier | Yes |
| Voltage - Output (Max) | 2.25V |
| Voltage - Input (Min) | 2.25V |
| Voltage - Output (Min/Fixed) | 0.5V |
