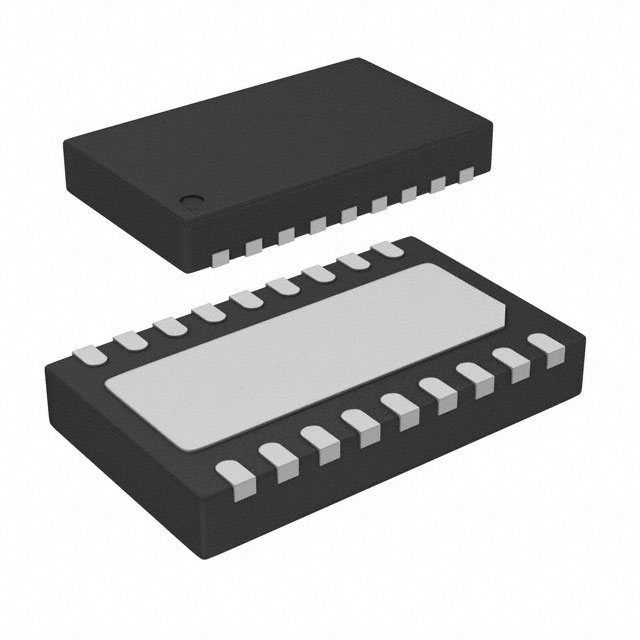

LTC3265MPDHC#PBF
IC REG CHARGE PUMP INV 18DFNManufacturer: Analog Devices Inc.
Categories: DC DC Switching Regulators
Quality Control: Learn More
Charge Pump Switching Regulator IC Positive and Negative (Dual Rail) Fixed -Vin, 2Vin 2 Output 100mA 18-WFDFN Exposed Pad
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 18-WFDFN Exposed Pad |
| Output Type | Fixed |
| Mounting Type | Surface Mount |
| Number of Outputs | 2 |
| Function | Ratiometric |
| Current - Output | 100mA |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Output Configuration | Positive and Negative (Dual Rail) |
| Frequency - Switching | 50kHz ~ 500kHz |
| Voltage - Input (Max) | 32V |
| Topology | Charge Pump |
| Supplier Device Package | 18-DFN (5x3) |
| Synchronous Rectifier | No |
| Voltage - Output (Max) | - |
| Voltage - Input (Min) | 4.5V |
| Voltage - Output (Min/Fixed) | -Vin, 2Vin |
