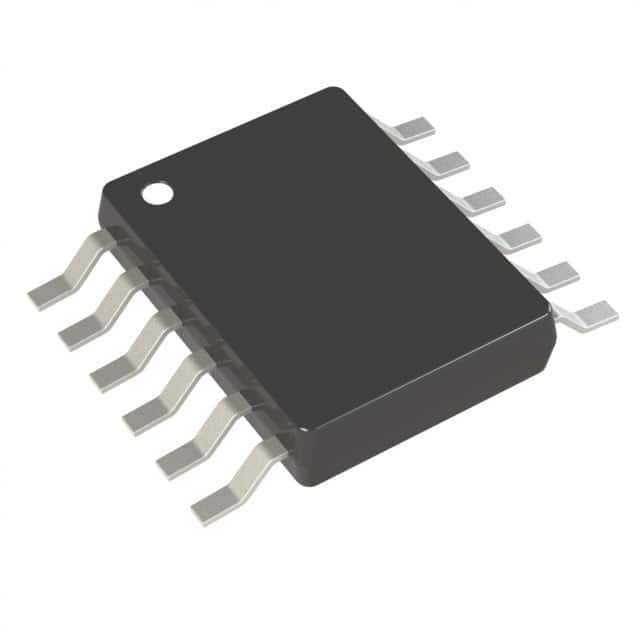

LTC3245MPMSE#TRPBF
IC REG CHG PUMP ADJ 250MA 12MSOPManufacturer: Analog Devices Inc.
Categories: DC DC Switching Regulators
Quality Control: Learn More
Analog Devices Inc. LTC3245MPMSE-TRPBF is a charge pump switching regulator IC designed for efficient power conversion. This positive, adjustable output device offers a selectable output voltage of 2.5V, 3.3V, or 5V, configurable via external resistors. With a maximum output current of 250mA and an input voltage range from 2.7V to 38V, it provides a flexible solution for step-up and step-down applications. The regulator operates at a switching frequency of 450kHz, minimizing external component size and improving transient response. Its 12-MSOP-EP package with an exposed pad facilitates enhanced thermal performance. This component is suitable for use in applications requiring regulated power in automotive, industrial, and communication systems. The operating temperature range is -55°C to 150°C (TJ).
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 12-TSSOP (0.118"", 3.00mm Width) Exposed Pad |
| Output Type | Adjustable (Programmable) |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Function | Step-Up/Step-Down |
| Current - Output | 250mA |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Output Configuration | Positive |
| Frequency - Switching | 450kHz |
| Voltage - Input (Max) | 38V |
| Topology | Charge Pump |
| Supplier Device Package | 12-MSOP-EP |
| Synchronous Rectifier | No |
| Voltage - Output (Max) | 5V |
| Voltage - Input (Min) | 2.7V |
| Voltage - Output (Min/Fixed) | 2.5V (3.3V, 5V) |
