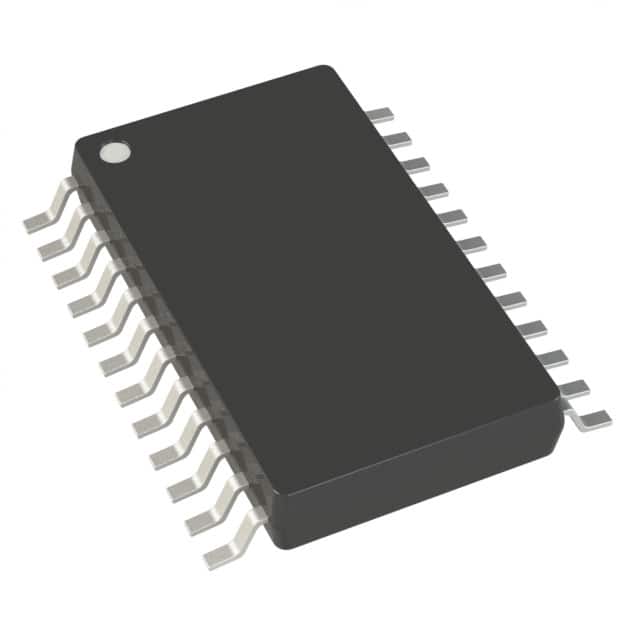

LTC3128EFE#PBF
IC REG BUCK-BOOST ADJ 3A 24TSSOPManufacturer: Analog Devices Inc.
Categories: DC DC Switching Regulators
Quality Control: Learn More
The Analog Devices Inc. LTC3128EFE-PBF is a highly efficient buck-boost switching regulator IC. It offers a positive adjustable output voltage, capable of stepping up or down between 1.8V and 5.5V, with a maximum output current of 3A. This device operates with an input voltage range from 1.73V to 5.5V, making it suitable for diverse power conversion needs. Featuring a switching frequency of 1.2MHz and a synchronous rectifier, the LTC3128EFE-PBF is designed for optimal power efficiency. It is housed in a 24-TSSOP (0.173", 4.40mm Width) exposed pad package, designed for surface mounting. This component finds application in various industries including automotive, industrial, and consumer electronics where flexible and efficient power management is critical. It is supplied in a tube.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 24-TSSOP (0.173"", 4.40mm Width) Exposed Pad |
| Output Type | Adjustable |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Function | Step-Up/Step-Down |
| Current - Output | 3A |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Output Configuration | Positive |
| Frequency - Switching | 1.2MHz |
| Voltage - Input (Max) | 5.5V |
| Topology | Buck-Boost |
| Supplier Device Package | 24-TSSOP |
| Synchronous Rectifier | Yes |
| Voltage - Output (Max) | 5.5V |
| Voltage - Input (Min) | 1.73V |
| Voltage - Output (Min/Fixed) | 1.8V |
