LTC3118MPUFD#TRPBF
IC REG BUCK-BOOST ADJ 2A 24QFNManufacturer: Analog Devices Inc.
Categories: DC DC Switching Regulators
Quality Control: Learn More
The Analog Devices Inc. LTC3118MPUFD-TRPBF is a high-performance buck-boost switching regulator. This adjustable output device offers a wide input voltage range from 2.2V to 18V and can provide a regulated output voltage from 2V up to 18V. With a maximum output current of 2A, it is suitable for applications requiring efficient voltage conversion. The regulator operates at a switching frequency of 1.2MHz and features a synchronous rectifier for improved efficiency. Its topology allows for seamless transition between buck and boost modes, making it ideal for systems with fluctuating input power sources. The component is housed in a 24-WFQFN exposed pad package, designed for surface mounting. This device finds application in industries such as automotive, industrial, and portable electronics.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |

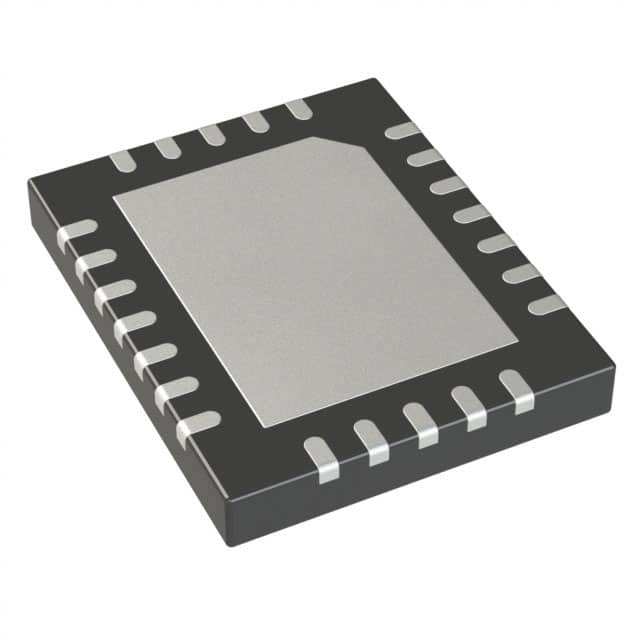

| Package / Case | 24-WFQFN Exposed Pad |
| Output Type | Adjustable |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Function | Step-Up/Step-Down |
| Current - Output | 2A |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Output Configuration | Positive |
| Frequency - Switching | 1.2MHz |
| Voltage - Input (Max) | 18V |
| Topology | Buck-Boost |
| Supplier Device Package | 24-QFN (4x5) |
| Synchronous Rectifier | Yes |
| Voltage - Output (Max) | 18V |
| Voltage - Input (Min) | 2.2V |
| Voltage - Output (Min/Fixed) | 2V |
