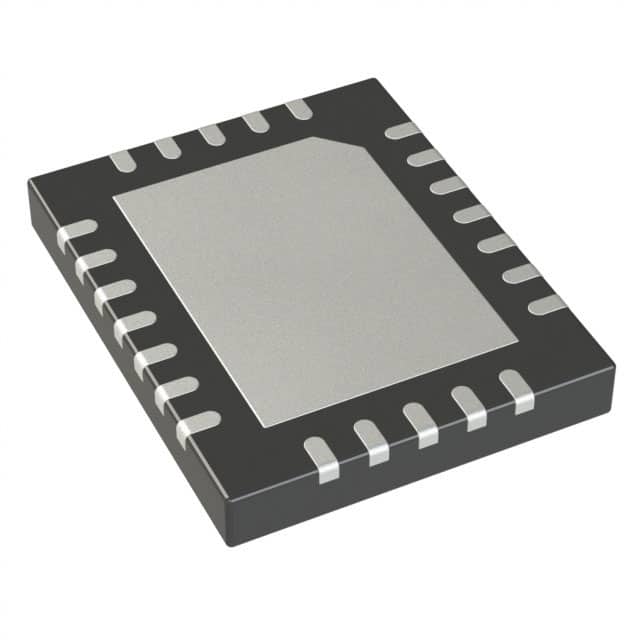

LTC3118MPUFD#PBF
IC REG BUCK-BOOST ADJ 2A 24QFNManufacturer: Analog Devices Inc.
Categories: DC DC Switching Regulators
Quality Control: Learn More
Analog Devices Inc. LTC3118MPUFD-PBF is a highly efficient, synchronous buck-boost switching regulator. This component offers a wide input voltage range of 2.2V to 18V and an adjustable output voltage from 2V up to 18V. With a maximum output current of 2A and a fixed switching frequency of 1.2MHz, it delivers stable power conversion for demanding applications. The device features a positive output configuration and is designed with a surface mount 24-QFN (4x5) exposed pad package for efficient thermal management. Its buck-boost topology allows for seamless operation across input voltages both above and below the output voltage. This component is suitable for use in industrial, automotive, and power supply applications requiring robust voltage regulation.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 24-WFQFN Exposed Pad |
| Output Type | Adjustable |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Function | Step-Up/Step-Down |
| Current - Output | 2A |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Output Configuration | Positive |
| Frequency - Switching | 1.2MHz |
| Voltage - Input (Max) | 18V |
| Topology | Buck-Boost |
| Supplier Device Package | 24-QFN (4x5) |
| Synchronous Rectifier | Yes |
| Voltage - Output (Max) | 18V |
| Voltage - Input (Min) | 2.2V |
| Voltage - Output (Min/Fixed) | 2V |
