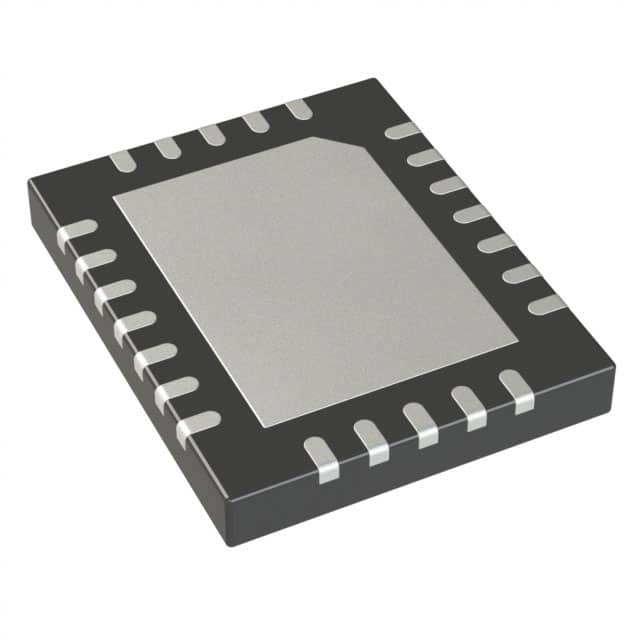

LTC3118IUFD#TRPBF
IC REG BUCK-BOOST ADJ 2A 24QFNManufacturer: Analog Devices Inc.
Categories: DC DC Switching Regulators
Quality Control: Learn More
The Analog Devices Inc. LTC3118IUFD-TRPBF is a high-performance, synchronous buck-boost switching regulator. This adjustable output device offers a wide input voltage range from 2.2V to 18V and can deliver an output voltage from 2V up to 18V, with a maximum output current of 2A. Its integrated synchronous rectification ensures high efficiency across various load conditions. Operating at a fixed switching frequency of 1.2MHz, the LTC3118IUFD-TRPBF is designed for compact solutions. It is supplied in a 24-lead, 4x5mm QFN package with an exposed pad for enhanced thermal performance, suitable for surface mounting. This component is widely utilized in battery-powered equipment, automotive systems, and industrial power supplies where efficient voltage regulation from a variable input source is critical.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 24-WFQFN Exposed Pad |
| Output Type | Adjustable |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Function | Step-Up/Step-Down |
| Current - Output | 2A |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Output Configuration | Positive |
| Frequency - Switching | 1.2MHz |
| Voltage - Input (Max) | 18V |
| Topology | Buck-Boost |
| Supplier Device Package | 24-QFN (4x5) |
| Synchronous Rectifier | Yes |
| Voltage - Output (Max) | 18V |
| Voltage - Input (Min) | 2.2V |
| Voltage - Output (Min/Fixed) | 2V |
