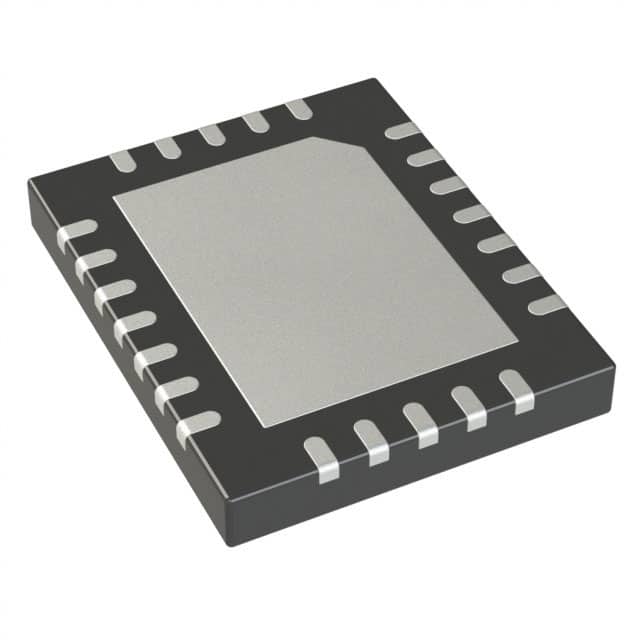

LTC3118HUFD#TRPBF
IC REG BUCK-BOOST ADJ 2A 24QFNManufacturer: Analog Devices Inc.
Categories: DC DC Switching Regulators
Quality Control: Learn More
The Analog Devices Inc. LTC3118HUFD-TRPBF is a high-performance buck-boost switching regulator designed for flexible power conversion. This component offers an adjustable positive output voltage ranging from 2V up to 18V, capable of delivering up to 2A of continuous output current. Its versatile buck-boost topology efficiently handles input voltage ranges from 2.2V to 18V, making it suitable for applications where the input voltage can be above, below, or equal to the desired output.
Featuring a switching frequency of 1.2MHz and a synchronous rectifier, the LTC3118HUFD-TRPBF prioritizes efficiency and compact solution size. The device is packaged in a 24-WFQFN exposed pad, supporting surface mount installation. This regulator is engineered for operation across a wide temperature range of -40°C to 150°C (TJ), ensuring reliability in demanding environments. It finds application in battery-powered portable devices, industrial power systems, and automotive electronics requiring stable voltage regulation from fluctuating input sources.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 24-WFQFN Exposed Pad |
| Output Type | Adjustable |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Function | Step-Up/Step-Down |
| Current - Output | 2A |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Output Configuration | Positive |
| Frequency - Switching | 1.2MHz |
| Voltage - Input (Max) | 18V |
| Topology | Buck-Boost |
| Supplier Device Package | 24-QFN (4x5) |
| Synchronous Rectifier | Yes |
| Voltage - Output (Max) | 18V |
| Voltage - Input (Min) | 2.2V |
| Voltage - Output (Min/Fixed) | 2V |
