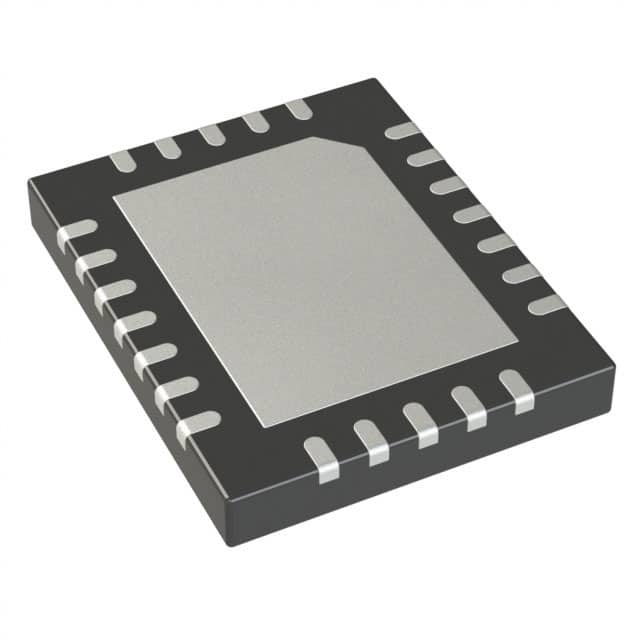

LTC3118EUFD#TRPBF
IC REG BUCK-BOOST ADJ 2A 24QFNManufacturer: Analog Devices Inc.
Categories: DC DC Switching Regulators
Quality Control: Learn More
The Analog Devices Inc. LTC3118EUFD-TRPBF is a 2.2V to 18V input, adjustable positive output buck-boost switching regulator. This component delivers up to 2A of output current with a switching frequency of 1.2MHz, facilitating efficient power conversion across a wide range of input voltages. Featuring a synchronous rectifier for enhanced efficiency, the LTC3118EUFD-TRPBF is housed in a 24-WFQFN exposed pad package. Its adjustable output capability, ranging from 2V to 18V, makes it suitable for applications requiring precise voltage regulation. This device is commonly utilized in industries such as automotive, industrial automation, and portable electronics where efficient and flexible power management is critical. The component is supplied on tape and reel for automated assembly.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 24-WFQFN Exposed Pad |
| Output Type | Adjustable |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Function | Step-Up/Step-Down |
| Current - Output | 2A |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Output Configuration | Positive |
| Frequency - Switching | 1.2MHz |
| Voltage - Input (Max) | 18V |
| Topology | Buck-Boost |
| Supplier Device Package | 24-QFN (4x5) |
| Synchronous Rectifier | Yes |
| Voltage - Output (Max) | 18V |
| Voltage - Input (Min) | 2.2V |
| Voltage - Output (Min/Fixed) | 2V |
Request a Quote
