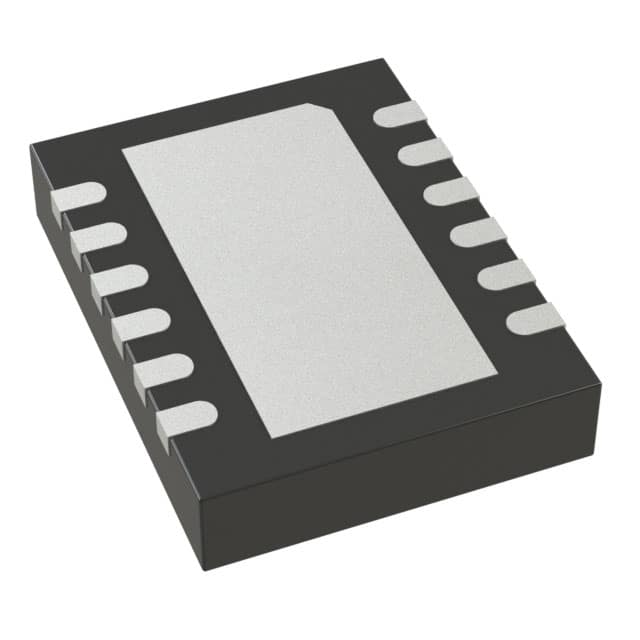

LTC3115IDHD-1#WTRPBF
IC REG BUCK-BST ADJ 1A/2A 16DFNManufacturer: Analog Devices Inc.
Categories: DC DC Switching Regulators
Quality Control: Learn More
The Analog Devices Inc. LTC3115IDHD-1-WTRPBF is a versatile buck-boost switching regulator designed for automotive applications. This component offers adjustable positive output voltage from 2.7V up to 40V, with selectable output currents of 1A or 2A. Operating across an input voltage range of 2.7V to 40V, it employs a buck-boost topology with a switching frequency adjustable from 100kHz to 2MHz, enabling efficient power conversion in a single IC. Featuring synchronous rectification, it minimizes conduction losses. The LTC3115IDHD-1-WTRPBF is AEC-Q100 qualified and supplied in a 16-WFDFN exposed pad package suitable for surface mounting. Its wide input and output voltage capabilities make it suitable for automotive systems like infotainment, ADAS, and battery management.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 16-WFDFN Exposed Pad |
| Output Type | Adjustable |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Function | Step-Up/Step-Down |
| Current - Output | 1A, 2A |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Output Configuration | Positive |
| Frequency - Switching | 100kHz ~ 2MHz |
| Voltage - Input (Max) | 40V |
| Topology | Buck-Boost |
| Supplier Device Package | 16-DFN (5x4) |
| Synchronous Rectifier | Yes |
| Voltage - Output (Max) | 40V |
| Voltage - Input (Min) | 2.7V |
| Voltage - Output (Min/Fixed) | 2.7V |
| Grade | Automotive |
| Qualification | AEC-Q100 |
