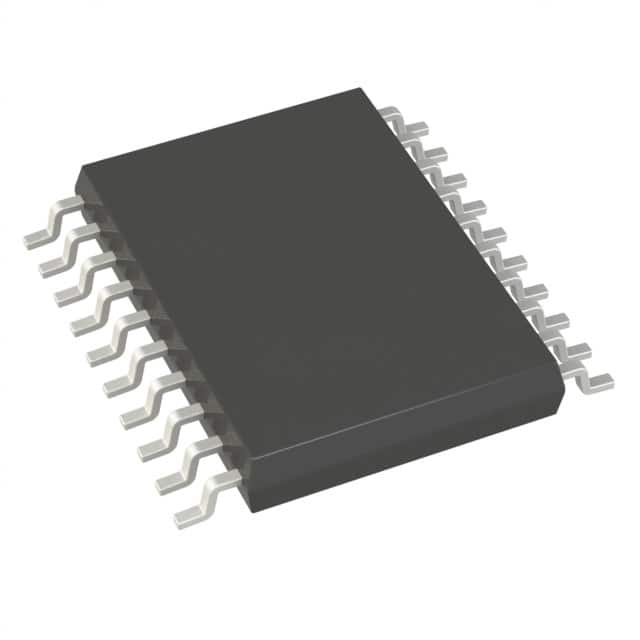

LTC3115HFE-2#TRPBF
IC REG BCK BST ADJ 20TSSOPManufacturer: Analog Devices Inc.
Categories: DC DC Switching Regulators
Quality Control: Learn More
Analog Devices Inc. LTC3115HFE-2-TRPBF is a high-efficiency, synchronous buck-boost switching regulator. This component offers a positive adjustable output voltage, capable of providing 800mA to 2A of current. It operates with an input voltage range of 2.2V to 40V and an output voltage range from 2.7V up to 40V. The switching frequency is adjustable from 100kHz to 2MHz, allowing for optimization of component size and efficiency. Featuring a 20-TSSOP (0.173", 4.40mm Width) Exposed Pad package, this device is designed for surface mount applications. Its wide operating temperature range of -40°C to 150°C (TJ) makes it suitable for demanding environments. The integrated synchronous rectifier enhances efficiency. This regulator is commonly employed in power management solutions across automotive, industrial, and consumer electronics sectors.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 20-TSSOP (0.173"", 4.40mm Width) Exposed Pad |
| Output Type | Adjustable |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Function | Step-Up/Step-Down |
| Current - Output | 800mA, 2A |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Output Configuration | Positive |
| Frequency - Switching | 100kHz ~ 2MHz |
| Voltage - Input (Max) | 40V |
| Topology | Buck-Boost |
| Supplier Device Package | 20-TSSOP-EP |
| Synchronous Rectifier | Yes |
| Voltage - Output (Max) | 40V |
| Voltage - Input (Min) | 2.2V |
| Voltage - Output (Min/Fixed) | 2.7V |
