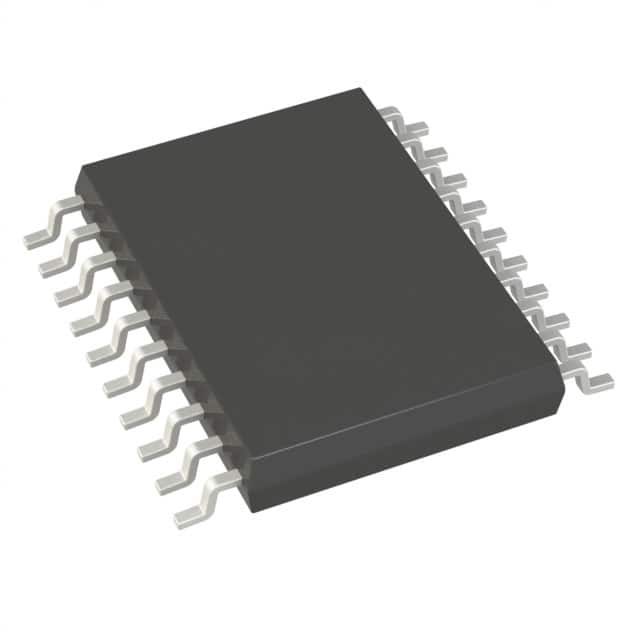

LTC3115HFE-1#TRPBF
IC REG BCK BST ADJ 1A/2A 20TSSOPManufacturer: Analog Devices Inc.
Categories: DC DC Switching Regulators
Quality Control: Learn More
The Analog Devices Inc. LTC3115HFE-1-TRPBF is a high-performance buck-boost switching regulator. This component features an adjustable positive output voltage, capable of sourcing up to 1A or 2A depending on the operating mode, with a minimum fixed output of 2.7V and a maximum output of 40V. It accepts input voltages from 2.2V to 40V. The device operates with a switching frequency range of 100kHz to 2MHz, making it suitable for a wide array of power management applications. Its buck-boost topology ensures efficient voltage conversion across varying input conditions. The LTC3115HFE-1-TRPBF is designed for surface mount installation in a 20-TSSOP-EP package with an exposed pad. It operates across an extended temperature range of -40°C to 150°C (TJ) and includes a synchronous rectifier for improved efficiency. This component is utilized in industries such as industrial automation, medical devices, and battery-powered systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 20-TSSOP (0.173"", 4.40mm Width) Exposed Pad |
| Output Type | Adjustable |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Function | Step-Up/Step-Down |
| Current - Output | 1A, 2A |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Output Configuration | Positive |
| Frequency - Switching | 100kHz ~ 2MHz |
| Voltage - Input (Max) | 40V |
| Topology | Buck-Boost |
| Supplier Device Package | 20-TSSOP-EP |
| Synchronous Rectifier | Yes |
| Voltage - Output (Max) | 40V |
| Voltage - Input (Min) | 2.2V |
| Voltage - Output (Min/Fixed) | 2.7V |
