LTC3115EFE-1#TRPBF
IC REG BCK-BST ADJ 1A/2A 20TSSOPManufacturer: Analog Devices Inc.
Categories: DC DC Switching Regulators
Quality Control: Learn More
Analog Devices Inc. LTC3115EFE-1-TRPBF is a versatile buck-boost switching regulator designed for applications requiring efficient voltage conversion. This component features an adjustable positive output voltage, capable of stepping up or down to maintain a stable output from a wide input voltage range of 2.2V to 40V, with a maximum output voltage of 40V. It supports output currents of 1A and 2A, configurable for various load demands. The switching frequency is adjustable from 100kHz to 2MHz, allowing for optimization of power efficiency and component size. The LTC3115EFE-1-TRPBF is housed in a 20-TSSOP-EP package with an exposed pad for enhanced thermal performance, suitable for surface mount applications. Its synchronous rectification ensures high efficiency across a broad operating range. This part is commonly utilized in industrial automation, medical devices, and portable electronics.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |

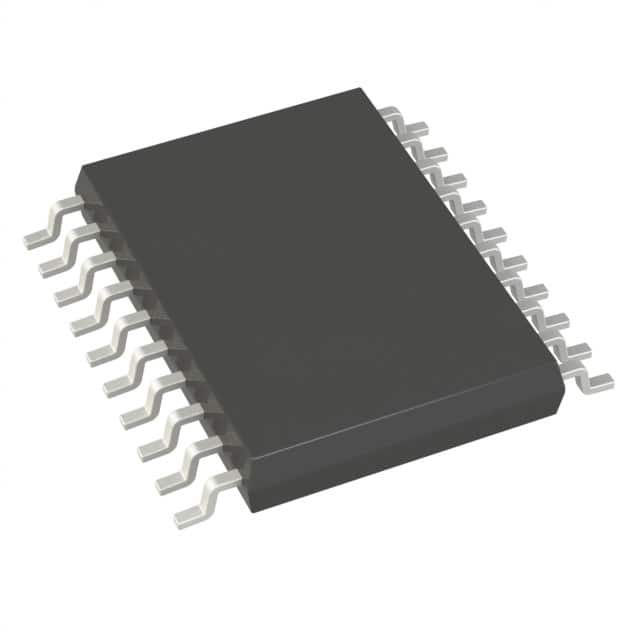

| Package / Case | 20-TSSOP (0.173"", 4.40mm Width) Exposed Pad |
| Output Type | Adjustable |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Function | Step-Up/Step-Down |
| Current - Output | 1A, 2A |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Output Configuration | Positive |
| Frequency - Switching | 100kHz ~ 2MHz |
| Voltage - Input (Max) | 40V |
| Topology | Buck-Boost |
| Supplier Device Package | 20-TSSOP-EP |
| Synchronous Rectifier | Yes |
| Voltage - Output (Max) | 40V |
| Voltage - Input (Min) | 2.2V |
| Voltage - Output (Min/Fixed) | 2.7V |
