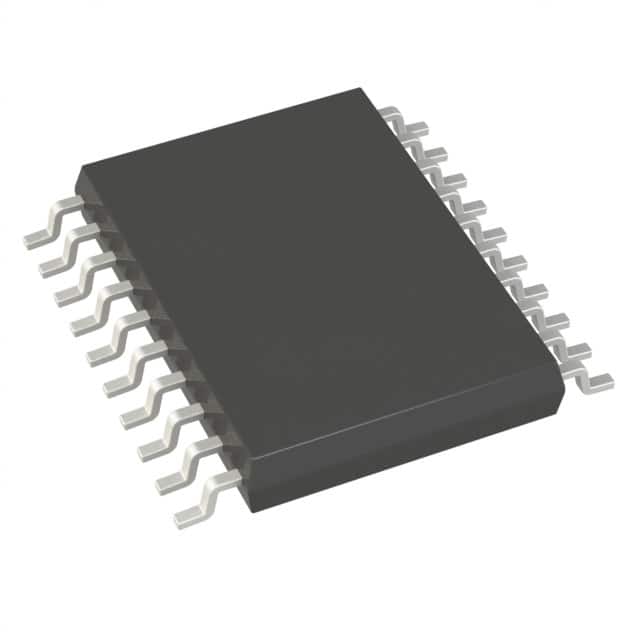

LTC3115EFE-1#PBF
IC REG BCK BST ADJ 1A/2A 20TSSOPManufacturer: Analog Devices Inc.
Categories: DC DC Switching Regulators
Quality Control: Learn More
The Analog Devices Inc. LTC3115EFE-1-PBF is a high-performance buck-boost switching regulator. This versatile component offers adjustable positive output voltages from 2.7V up to 40V, supporting input voltages ranging from 2.2V to 40V. It features a 1A and 2A output current capability and operates with a selectable switching frequency between 100kHz and 2MHz, enabling optimization for efficiency and size. The LTC3115EFE-1-PBF incorporates a synchronous rectifier for improved efficiency. Packaged in a 20-TSSOP-EP with an exposed pad, it is designed for surface mounting. This device finds application in power management solutions across various industries, including automotive, industrial, and medical equipment.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 20-TSSOP (0.173"", 4.40mm Width) Exposed Pad |
| Output Type | Adjustable |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Function | Step-Up/Step-Down |
| Current - Output | 1A, 2A |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Output Configuration | Positive |
| Frequency - Switching | 100kHz ~ 2MHz |
| Voltage - Input (Max) | 40V |
| Topology | Buck-Boost |
| Supplier Device Package | 20-TSSOP-EP |
| Synchronous Rectifier | Yes |
| Voltage - Output (Max) | 40V |
| Voltage - Input (Min) | 2.2V |
| Voltage - Output (Min/Fixed) | 2.7V |
