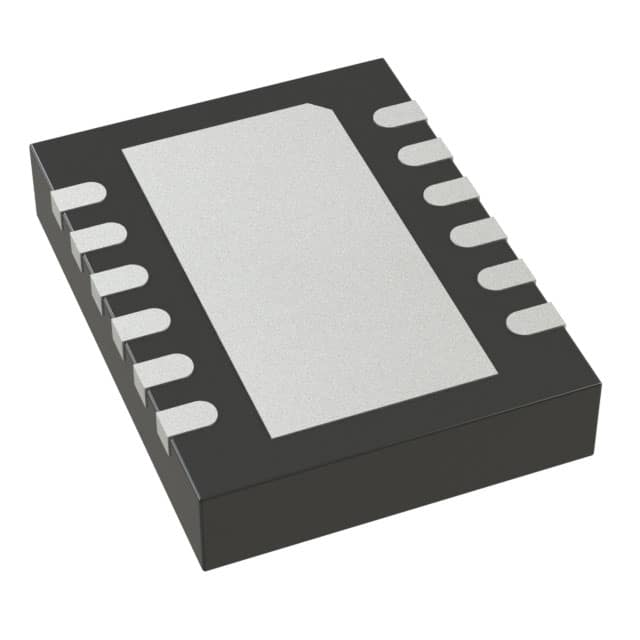

LTC3115EDHD-1#PBF
IC REG BUCK-BST ADJ 1A/2A 16DFNManufacturer: Analog Devices Inc.
Categories: DC DC Switching Regulators
Quality Control: Learn More
The Analog Devices Inc. LTC3115EDHD-1-PBF is a versatile buck-boost switching regulator offering a flexible output voltage from 2.7V up to 40V, adjustable across a wide input range of 2.2V to 40V. This component is capable of delivering up to 1A or 2A of output current, depending on the operating mode, and features a wide switching frequency range from 100kHz to 2MHz, allowing for optimization of size and efficiency. Its synchronous rectification ensures high efficiency for both step-up and step-down conversion. The 16-WFDFN Exposed Pad package facilitates efficient thermal management. This device is well-suited for applications in battery-powered systems, portable electronics, and automotive sectors where efficient voltage regulation from varying input sources is critical. The operating temperature range is -40°C to 125°C (TJ).
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 16-WFDFN Exposed Pad |
| Output Type | Adjustable |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Function | Step-Up/Step-Down |
| Current - Output | 1A, 2A |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Output Configuration | Positive |
| Frequency - Switching | 100kHz ~ 2MHz |
| Voltage - Input (Max) | 40V |
| Topology | Buck-Boost |
| Supplier Device Package | 16-DFN (5x4) |
| Synchronous Rectifier | Yes |
| Voltage - Output (Max) | 40V |
| Voltage - Input (Min) | 2.2V |
| Voltage - Output (Min/Fixed) | 2.7V |
