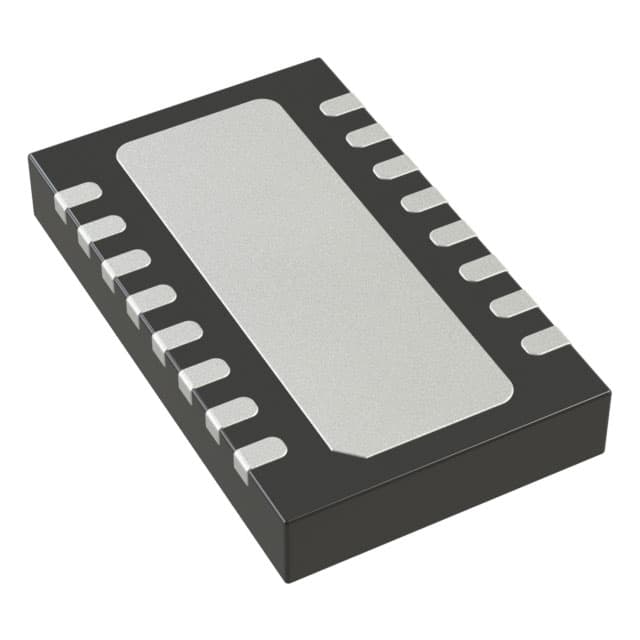

LTC3114IDHC-1#WTRPBF
IC REG BUCK-BOOST ADJ 1A 16DFNManufacturer: Analog Devices Inc.
Categories: DC DC Switching Regulators
Quality Control: Learn More
Buck-Boost Switching Regulator IC Positive Adjustable 2.7V 1 Output 1A 16-WFDFN Exposed Pad
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 16-WFDFN Exposed Pad |
| Output Type | Adjustable |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Function | Step-Up/Step-Down |
| Current - Output | 1A |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Output Configuration | Positive |
| Frequency - Switching | 1.2MHz |
| Voltage - Input (Max) | 40V |
| Topology | Buck-Boost |
| Supplier Device Package | 16-DFN (5x3) |
| Synchronous Rectifier | Yes |
| Voltage - Output (Max) | 40V |
| Voltage - Input (Min) | 2.2V |
| Voltage - Output (Min/Fixed) | 2.7V |
| Grade | Automotive |
| Qualification | AEC-Q100 |
