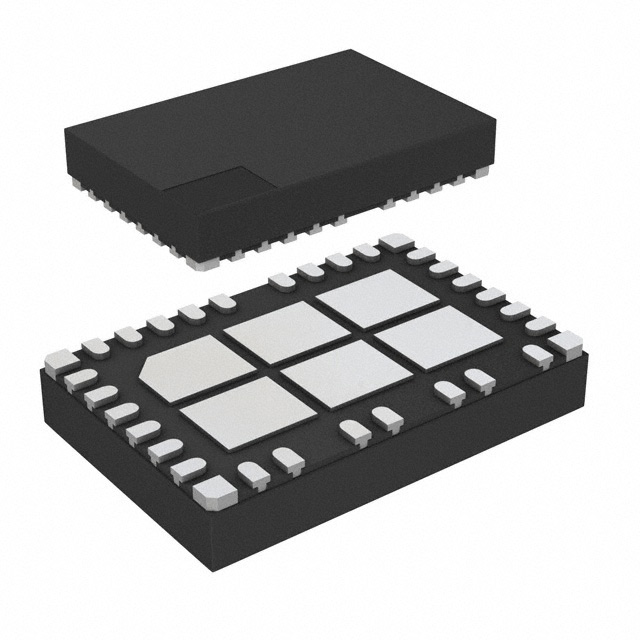

LT8650SIV#PBF
IC REG BUCK ADJ 4A DL 32LQFNManufacturer: Analog Devices Inc.
Categories: DC DC Switching Regulators
Quality Control: Learn More
Analog Devices Inc. presents the LT8650SIV-PBF, a dual-output, 4A per output, 42V input synchronous step-down switching regulator from the Silent Switcher®2 series. This component offers adjustable output voltages from 0.8V up to 42V, with a maximum input voltage of 42V and a minimum of 2.6V. Operating with a switching frequency adjustable from 300kHz to 3MHz, the LT8650SIV-PBF is designed for high efficiency and excellent electromagnetic interference (EMI) performance. Its dual outputs provide flexibility for complex power designs. The component is housed in a 32-lead LQFN (6x4) package with an exposed pad, suitable for surface mounting. Applications include automotive, industrial, and data center power systems where high current density and low noise are critical. The device operates across a temperature range of -40°C to 125°C (TJ).
Additional Information
Series: Silent Switcher®2RoHS Status: ROHS3 CompliantManufacturer Lead Time: 26 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 32-TFQFN Exposed Pad, 28 Leads |
| Output Type | Adjustable |
| Mounting Type | Surface Mount |
| Number of Outputs | 2 |
| Function | Step-Down |
| Current - Output | 4A |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Output Configuration | Positive |
| Frequency - Switching | 300kHz ~ 3MHz |
| Voltage - Input (Max) | 42V |
| Topology | Buck |
| Supplier Device Package | 32-LQFN (6x4) |
| Synchronous Rectifier | Yes |
| Voltage - Output (Max) | 42V |
| Voltage - Input (Min) | 2.6V |
| Voltage - Output (Min/Fixed) | 0.8V |
