LT8650SHV-CSL#PBF
2X CH 4A, 42V, SYNC BUCK SILENTManufacturer: Analog Devices Inc.
Categories: DC DC Switching Regulators
Quality Control: Learn More

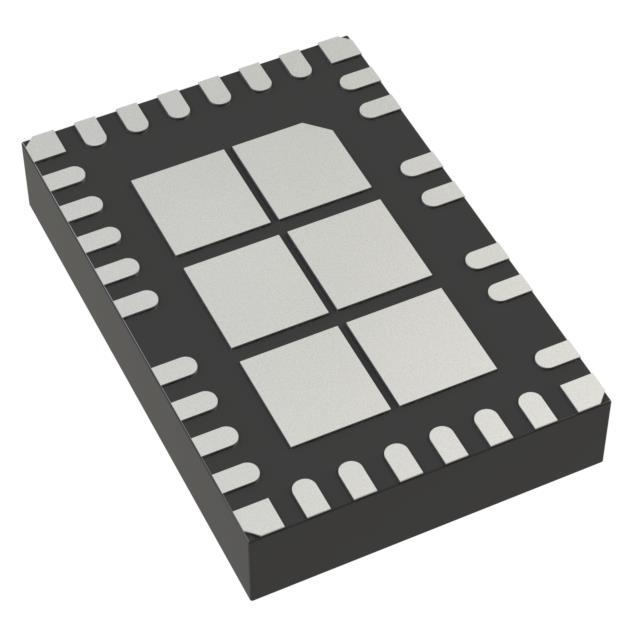

The Analog Devices Inc. LT8650SHV-CSL-PBF is a 2x 4A synchronous buck switching regulator from the LT®8650S series. This highly efficient component operates with an input voltage range of 2.6V to 42V and provides two independently regulated positive adjustable outputs, with a minimum output voltage of 0.8V. Featuring a wide switching frequency range from 300kHz to 3MHz, the LT8650SHV-CSL-PBF is designed for applications requiring low noise and high performance. Its topology utilizes synchronous rectification to maximize efficiency. The device is housed in a 32-TFQFN exposed pad package (28 leads) and is rated for operation across an extended temperature range of -40°C to 150°C (TJ). This component is suitable for demanding applications in automotive, industrial, and telecommunications sectors.
Additional Information
Series: LT®8650SRoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: TrayDownload Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 32-TFQFN Exposed Pad, 28 Leads |
| Output Type | Adjustable |
| Mounting Type | Surface Mount |
| Number of Outputs | 2 |
| Function | Step-Down |
| Current - Output | 4A |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Output Configuration | Positive |
| Frequency - Switching | 300kHz ~ 3MHz |
| Voltage - Input (Max) | 42V |
| Topology | Buck |
| Supplier Device Package | 32-LQFN (6x4) |
| Synchronous Rectifier | Yes |
| Voltage - Output (Max) | 42V |
| Voltage - Input (Min) | 2.6V |
| Voltage - Output (Min/Fixed) | 0.8V |
| Grade | - |
| Qualification | - |
