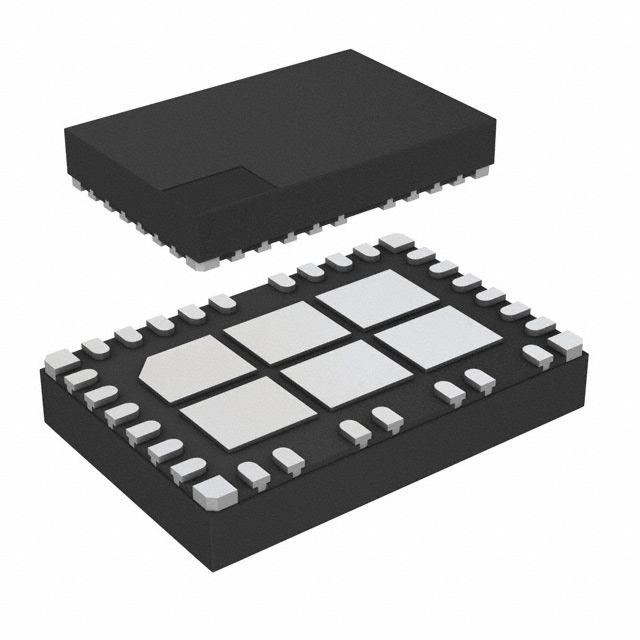

LT8650SHV-1#PBF
IC REG BUCK ADJ 4A DL 32LQFNManufacturer: Analog Devices Inc.
Categories: DC DC Switching Regulators
Quality Control: Learn More
Analog Devices Inc. LT8650SHV-1-PBF is a dual, synchronous step-down switching regulator from the Silent Switcher®2 series. This component is designed for high-volume applications requiring efficient power conversion. It offers adjustable positive output voltages from 0.8V up to 42V, with each output capable of delivering up to 4A. The LT8650SHV-1-PBF operates with a wide input voltage range of 2.6V to 42V and features a switching frequency adjustable from 300kHz to 3MHz. The device's synchronous rectification architecture enhances efficiency. Packaged in a 32-LQFN (6x4) with an exposed pad, it is suitable for surface mounting. Its robust operating temperature range of -40°C to 150°C (TJ) makes it ideal for automotive, industrial, and telecommunications infrastructure.
Additional Information
Series: Silent Switcher®2RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 32-TFQFN Exposed Pad, 28 Leads |
| Output Type | Adjustable |
| Mounting Type | Surface Mount |
| Number of Outputs | 2 |
| Function | Step-Down |
| Current - Output | 4A |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Output Configuration | Positive |
| Frequency - Switching | 300kHz ~ 3MHz |
| Voltage - Input (Max) | 42V |
| Topology | Buck |
| Supplier Device Package | 32-LQFN (6x4) |
| Synchronous Rectifier | Yes |
| Voltage - Output (Max) | 42V |
| Voltage - Input (Min) | 2.6V |
| Voltage - Output (Min/Fixed) | 0.8V |
