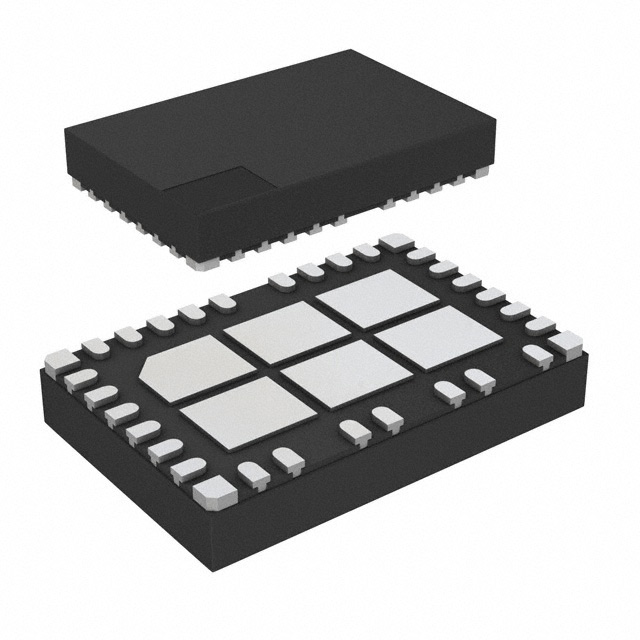

LT8650SEV#PBF
IC REG BUCK ADJ 4A DL 32LQFNManufacturer: Analog Devices Inc.
Categories: DC DC Switching Regulators
Quality Control: Learn More
The Analog Devices Inc. LT8650SEV-PBF is a dual 4A output synchronous step-down switching regulator from the Silent Switcher®2 series. This versatile component operates with an input voltage range of 2.6V to 42V and provides adjustable positive outputs from 0.8V up to 42V. With a wide switching frequency range from 300kHz to 3MHz, it offers flexibility for various power design requirements. The device features two independent 4A output channels, each with a synchronous rectifier for high efficiency. Packaged in a 32-LQFN (6x4) with an exposed pad, the LT8650SEV-PBF is designed for surface mount applications and operates within an ambient temperature range of -40°C to 125°C (TJ). Its robust design makes it suitable for automotive, industrial, and high-performance computing applications.
Additional Information
Series: Silent Switcher®2RoHS Status: ROHS3 CompliantManufacturer Lead Time: 26 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 32-TFQFN Exposed Pad, 28 Leads |
| Output Type | Adjustable |
| Mounting Type | Surface Mount |
| Number of Outputs | 2 |
| Function | Step-Down |
| Current - Output | 4A |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Output Configuration | Positive |
| Frequency - Switching | 300kHz ~ 3MHz |
| Voltage - Input (Max) | 42V |
| Topology | Buck |
| Supplier Device Package | 32-LQFN (6x4) |
| Synchronous Rectifier | Yes |
| Voltage - Output (Max) | 42V |
| Voltage - Input (Min) | 2.6V |
| Voltage - Output (Min/Fixed) | 0.8V |
Request a Quote
