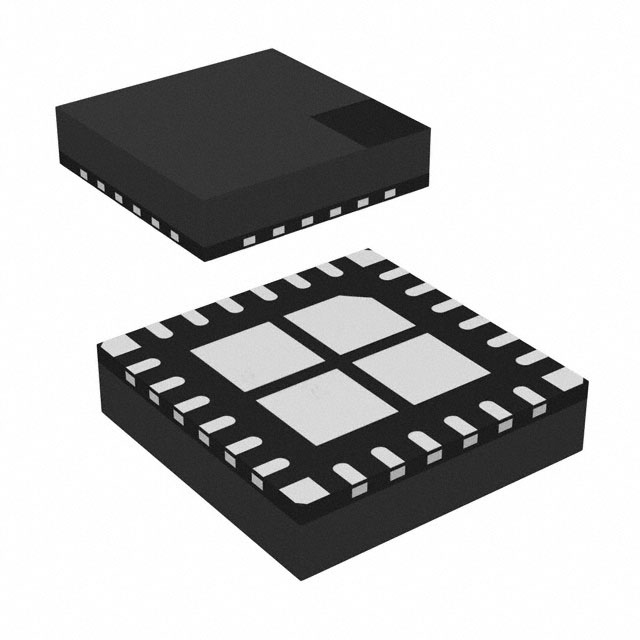

LT8644SIV#TRMPBF
IC REG BUCK ADJ 16A 24LQFNManufacturer: Analog Devices Inc.
Categories: DC DC Switching Regulators
Quality Control: Learn More
The Analog Devices Inc. LT8644SIV-TRMPBF is a high-performance, synchronous buck switching regulator from the Silent Switcher®2 series. This component is designed for step-down voltage conversion, offering an adjustable output voltage ranging from 0.6V to 8V. With a maximum output current capability of 16A, it is suitable for demanding power applications. The device operates across a wide input voltage range of 1.5V to 8V and features an adjustable switching frequency from 300kHz to 3.5MHz, allowing for optimization of efficiency and component size. Its 24-LQFN (4x4) exposed pad package facilitates efficient thermal management. The LT8644SIV-TRMPBF is utilized in industries such as automotive, industrial automation, and telecommunications where robust and efficient power regulation is critical.
Additional Information
Series: Silent Switcher®2RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 24-TFQFN Exposed Pad |
| Output Type | Adjustable |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Function | Step-Down |
| Current - Output | 16A |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Output Configuration | Positive |
| Frequency - Switching | 300kHz ~ 3.5MHz |
| Voltage - Input (Max) | 8V |
| Topology | Buck |
| Supplier Device Package | 24-LQFN (4x4) |
| Synchronous Rectifier | Yes |
| Voltage - Output (Max) | 8V |
| Voltage - Input (Min) | 1.5V |
| Voltage - Output (Min/Fixed) | 0.6V |
Request a Quote
Clients Also Buy
LT8640SIV-2#PBF
IC REG BUCK ADJ 6A 24LQFN

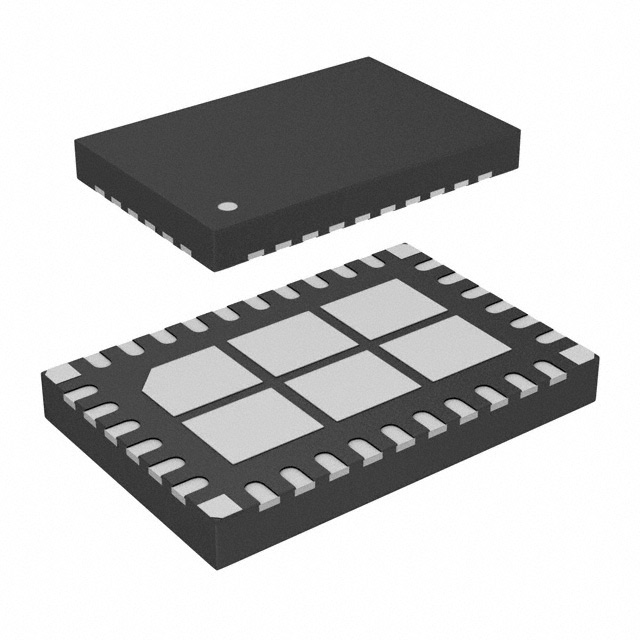

LT8646SIV#WPBF
IC REG BUCK ADJ 8A 32LQFN

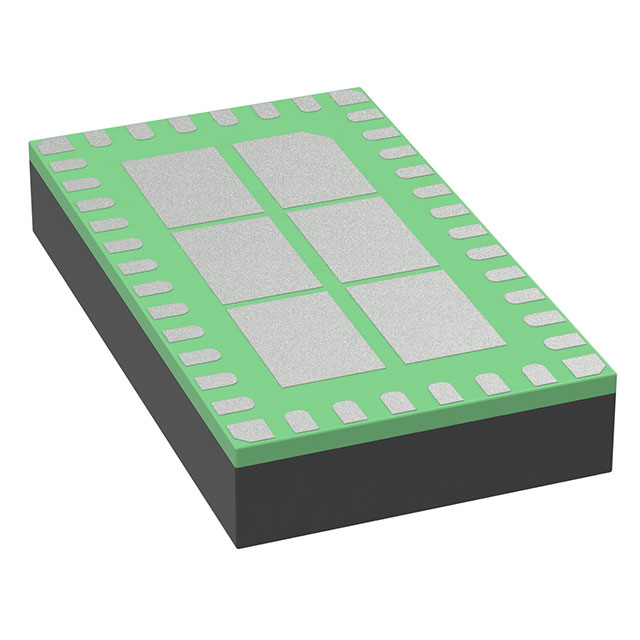

LT8652SEV#PBF
