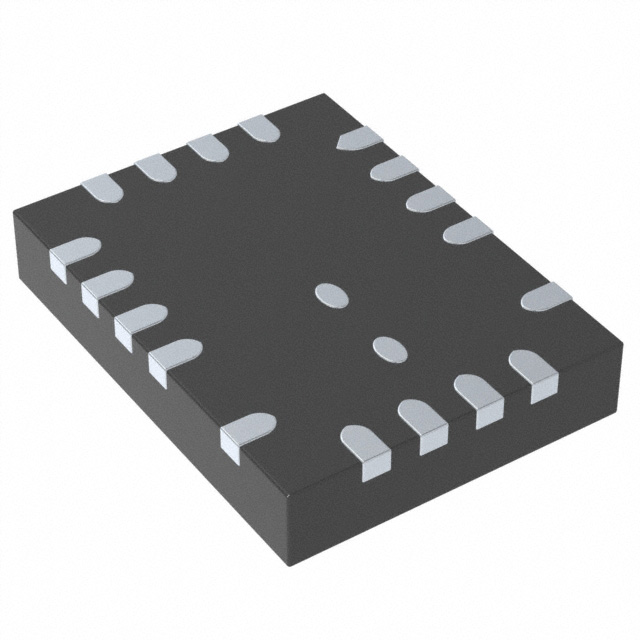

LT8640JUDCF#TRPBF
IC REG BUCK ADJ 5A 20QFNManufacturer: Analog Devices Inc.
Categories: DC DC Switching Regulators
Quality Control: Learn More
Analog Devices Inc. LT8640JUDCF-TRPBF is a Silent Switcher®1 series, adjustable output positive buck switching regulator. This component offers a 5A output current capability and operates from a 3.4V to 42V input range, with a maximum output voltage also up to 42V. It features a configurable switching frequency between 210kHz and 2MHz. The device integrates a synchronous rectifier for high efficiency and is housed in a 20-WFQFN (3x4 EP) package with 18 leads and an exposed pad, suitable for surface mount applications. The operating temperature range is -40°C to 125°C (TJ). This regulator is utilized in automotive, industrial, and high-reliability power supply applications.
Additional Information
Series: Silent Switcher®1RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 20-WFQFN, 18 Leads, Exposed Pad |
| Output Type | Adjustable |
| Mounting Type | Surface Mount, Wettable Flank |
| Number of Outputs | 1 |
| Function | Step-Down |
| Current - Output | 5A |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Output Configuration | Positive |
| Frequency - Switching | 210kHz ~ 2MHz |
| Voltage - Input (Max) | 42V |
| Topology | Buck |
| Supplier Device Package | 20-QFN (3x4) |
| Synchronous Rectifier | Yes |
| Voltage - Output (Max) | 42V |
| Voltage - Input (Min) | 3.4V |
| Voltage - Output (Min/Fixed) | 0.97V |
