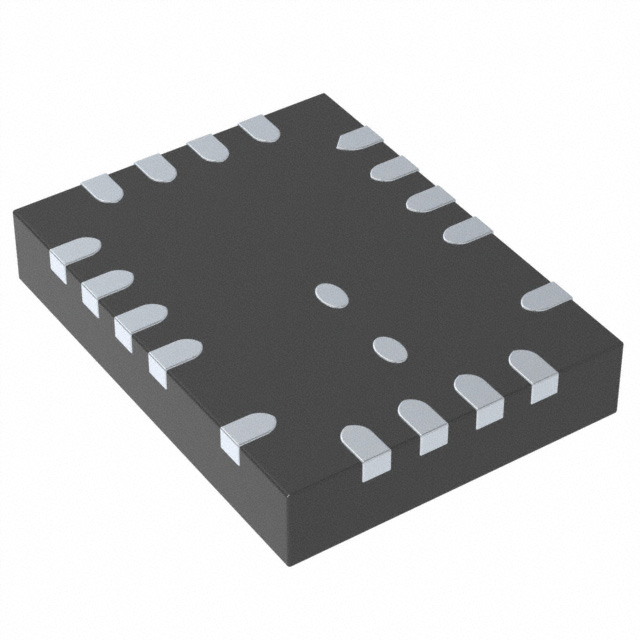

LT8640JUDCF-1#WTRPBF
IC REG BUCK ADJ 5A 20QFNManufacturer: Analog Devices Inc.
Categories: DC DC Switching Regulators
Quality Control: Learn More
The Analog Devices Inc. LT8640JUDCF-1-WTRPBF is a Silent Switcher®1 series buck switching regulator. This component offers a positive adjustable output voltage with a minimum of 0.97V and a maximum of 42V, capable of delivering up to 5A. Designed for high-frequency operation, its switching frequency can be configured between 200kHz and 3MHz. The input voltage range spans from 3.4V to 42V. Featuring a synchronous rectifier, this device is built for efficient power conversion. The LT8640JUDCF-1-WTRPBF is supplied in a 20-QFN (3x4) package with wettable flank capabilities, suitable for surface mounting. Its AEC-Q100 qualification makes it appropriate for automotive applications. This device is available on tape and reel.
Additional Information
Series: Silent Switcher®1RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 20-WFQFN, 18 Leads, Exposed Pad |
| Output Type | Adjustable |
| Mounting Type | Surface Mount, Wettable Flank |
| Number of Outputs | 1 |
| Function | Step-Down |
| Current - Output | 5A |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Output Configuration | Positive |
| Frequency - Switching | 200kHz ~ 3MHz |
| Voltage - Input (Max) | 42V |
| Topology | Buck |
| Supplier Device Package | 20-QFN (3x4) |
| Synchronous Rectifier | Yes |
| Voltage - Output (Max) | 42V |
| Voltage - Input (Min) | 3.4V |
| Voltage - Output (Min/Fixed) | 0.97V |
| Grade | Automotive |
| Qualification | AEC-Q100 |
