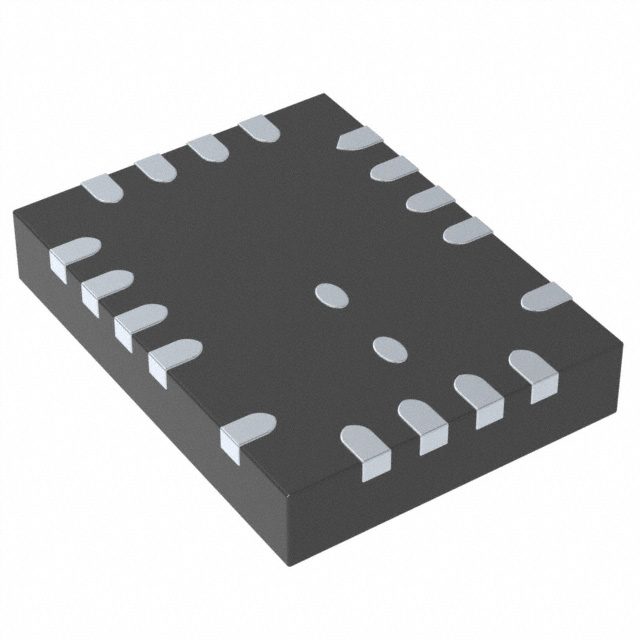

LT8640IUDCF#TRPBF
IC REG BUCK ADJ 5A 20QFNManufacturer: Analog Devices Inc.
Categories: DC DC Switching Regulators
Quality Control: Learn More
The Analog Devices Inc. LT8640IUDCF-TRPBF is a Silent Switcher®1 series, step-down (buck) switching regulator. This component offers a positive adjustable output voltage, with a minimum fixed voltage of 0.97V and a maximum adjustable output of 42V. It is capable of delivering an output current of 5A. The device operates with an input voltage range from 3.4V to 42V. Featuring a high switching frequency adjustable from 210kHz to 2MHz, this regulator integrates a synchronous rectifier for enhanced efficiency. It is supplied in a 20-QFN (3x4) package with 18 leads and an exposed pad, suitable for surface mount applications with wettable flanks. The operating temperature range is -40°C to 125°C (TJ). This component is utilized in industries such as automotive, industrial power, and telecommunications.
Additional Information
Series: Silent Switcher®1RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 20-WFQFN, 18 Leads, Exposed Pad |
| Output Type | Adjustable |
| Mounting Type | Surface Mount, Wettable Flank |
| Number of Outputs | 1 |
| Function | Step-Down |
| Current - Output | 5A |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Output Configuration | Positive |
| Frequency - Switching | 210kHz ~ 2MHz |
| Voltage - Input (Max) | 42V |
| Topology | Buck |
| Supplier Device Package | 20-QFN (3x4) |
| Synchronous Rectifier | Yes |
| Voltage - Output (Max) | 42V |
| Voltage - Input (Min) | 3.4V |
| Voltage - Output (Min/Fixed) | 0.97V |
