LT8616IUDE
IC REG BUCK ADJ DL 28QFNManufacturer: Analog Devices Inc.
Categories: DC DC Switching Regulators
Quality Control: Learn More
Analog Devices Inc. LT8616IUDE is a dual synchronous step-down switching regulator. This component features two independent output channels, capable of delivering up to 1.5A and 2.5A respectively. The output voltage is adjustable from 0.79V up to 41.8V, with an input voltage range of 3.4V to 42V. Operating within a switching frequency range of 200kHz to 3MHz, the LT8616IUDE utilizes a buck topology and incorporates synchronous rectification for enhanced efficiency. It is supplied in a 28-lead 3x6 QFN package with an exposed pad, suitable for demanding surface mount applications. This regulator is well-suited for use in automotive, industrial, and communication systems requiring efficient and flexible DC-DC conversion. The operating temperature range is -40°C to 125°C (TA).
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDownload Free CAD Model:
Technical Details:
| Packaging | Tube |

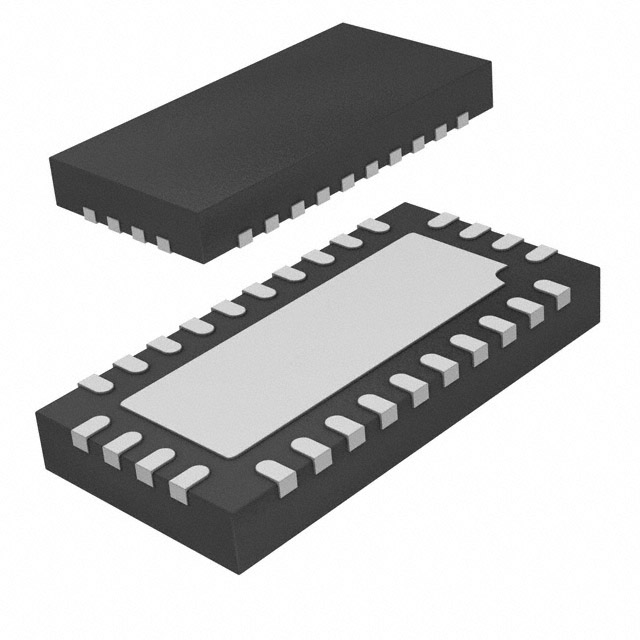

| Package / Case | 28-WFQFN Exposed Pad |
| Output Type | Adjustable |
| Mounting Type | Surface Mount |
| Number of Outputs | 2 |
| Function | Step-Down |
| Current - Output | 1.5A, 2.5A |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Output Configuration | Positive |
| Frequency - Switching | 200kHz ~ 3MHz |
| Voltage - Input (Max) | 42V |
| Topology | Buck |
| Supplier Device Package | 28-QFN (3x6) |
| Synchronous Rectifier | Yes |
| Voltage - Output (Max) | 41.8V |
| Voltage - Input (Min) | 3.4V |
| Voltage - Output (Min/Fixed) | 0.79V |
