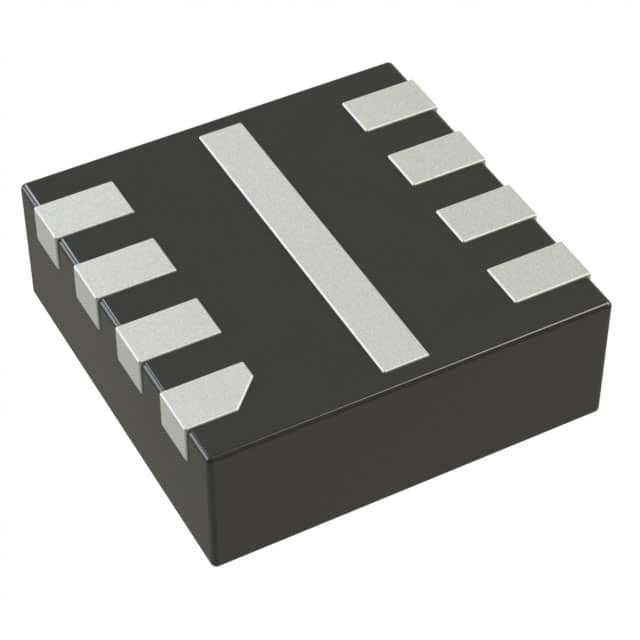

LT8607BHDC#TRMPBF
IC REG BUCK PROG 750MA 8DFNManufacturer: Analog Devices Inc.
Categories: DC DC Switching Regulators
Quality Control: Learn More
The Analog Devices Inc. LT8607BHDC-TRMPBF is a high-performance synchronous buck switching regulator designed for demanding applications. This component features a wide input voltage range from 2.5V to 42V and an output current capability of 750mA. Its programmable output voltage can be set from 0.778V up to the input voltage, with a maximum of 42V. The switching frequency is adjustable from 200kHz to 2.2MHz, allowing for optimization of efficiency and component size.
The LT8607BHDC-TRMPBF is housed in an 8-WFDFN exposed pad package, suitable for surface mounting. Its automotive grade qualification (AEC-Q100) and wide operating temperature range of -40°C to 150°C (TJ) make it ideal for use in automotive systems, industrial controls, and other high-reliability environments. The device incorporates a synchronous rectifier for improved efficiency.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-WFDFN Exposed Pad |
| Output Type | Programmable |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Function | Step-Down |
| Current - Output | 750mA |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Output Configuration | Positive |
| Frequency - Switching | 200kHz ~ 2.2MHz |
| Voltage - Input (Max) | 42V |
| Topology | Buck |
| Supplier Device Package | 8-DFN (2x2) |
| Synchronous Rectifier | Yes |
| Voltage - Output (Max) | 42V |
| Voltage - Input (Min) | 2.5V |
| Voltage - Output (Min/Fixed) | 0.778V |
| Grade | Automotive |
| Qualification | AEC-Q100 |
