LT8580IMS8E#PBF
IC REG BOOST CUK ADJ 1.2A 8MSOPManufacturer: Analog Devices Inc.
Categories: DC DC Switching Regulators
Quality Control: Learn More
Boost, Cuk, SEPIC Switching Regulator IC Positive or Negative Adjustable 1.2V 1 Output 1.2A (Switch) 8-TSSOP, 8-MSOP (0.118"", 3.00mm Width) Exposed Pad
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |

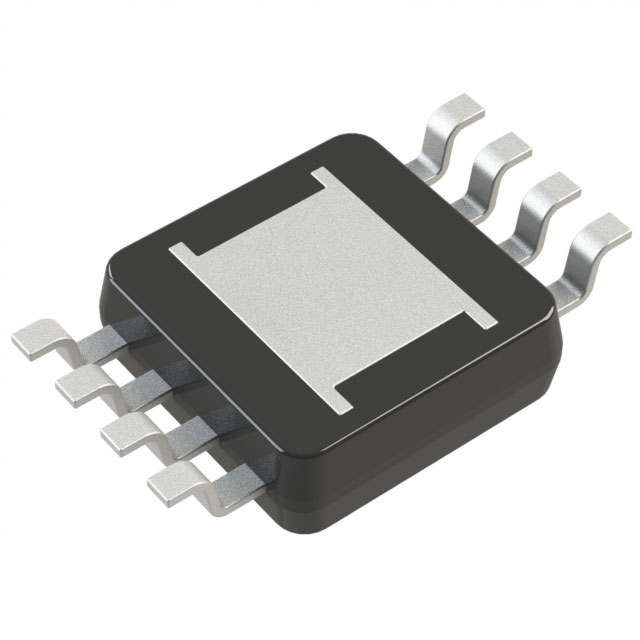

| Package / Case | 8-TSSOP, 8-MSOP (0.118"", 3.00mm Width) Exposed Pad |
| Output Type | Adjustable |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Function | Step-Up, Step-Up/Step-Down |
| Current - Output | 1.2A (Switch) |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Output Configuration | Positive or Negative |
| Frequency - Switching | 200kHz ~ 1.5MHz |
| Voltage - Input (Max) | 40V |
| Topology | Boost, Cuk, SEPIC |
| Supplier Device Package | 8-MSOP-EP |
| Synchronous Rectifier | No |
| Voltage - Output (Max) | 65V (Switch) |
| Voltage - Input (Min) | 2.55V |
| Voltage - Output (Min/Fixed) | 1.2V |
