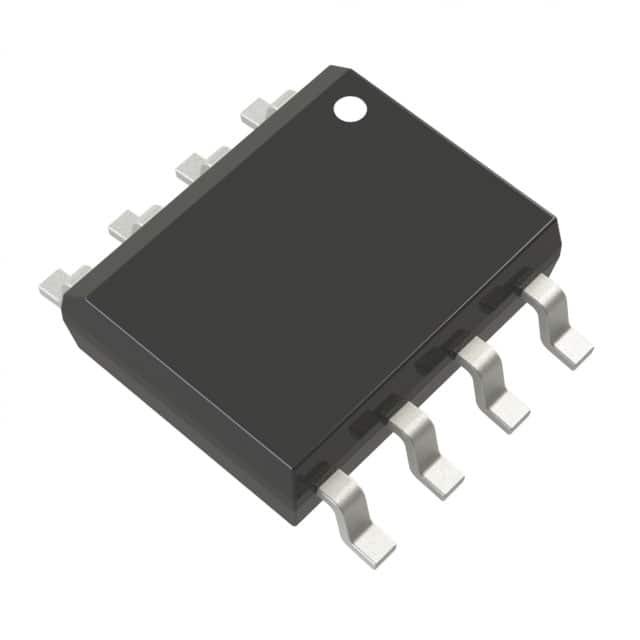

LT8302ES8E-3#TRPBF
IC REG FLYBACK 3.6A 8SOICManufacturer: Analog Devices Inc.
Categories: DC DC Switching Regulators
Quality Control: Learn More
Flyback Switching Regulator IC Positive or Negative, Isolation Capable 1 Output 3.6A 8-SOIC (0.154"", 3.90mm Width) Exposed Pad
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-SOIC (0.154"", 3.90mm Width) Exposed Pad |
| Output Type | - |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Function | Step-Up/Step-Down |
| Current - Output | 3.6A |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Output Configuration | Positive or Negative, Isolation Capable |
| Frequency - Switching | Down to 12kHz |
| Voltage - Input (Max) | 42V |
| Topology | Flyback |
| Supplier Device Package | 8-SOIC-EP |
| Synchronous Rectifier | No |
| Voltage - Output (Max) | 65V (Switch) |
| Voltage - Input (Min) | 3V |
| Voltage - Output (Min/Fixed) | - |
Request a Quote
