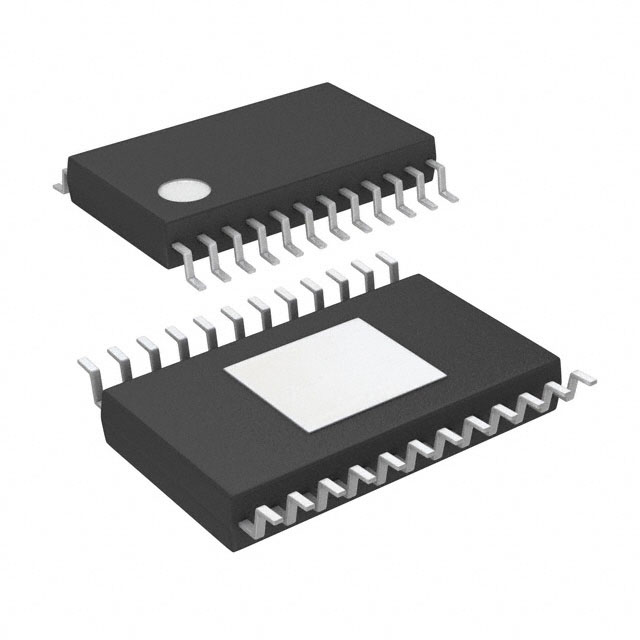

LT3688EFE#PBF
IC REG BUCK ADJ 800MA DL 24TSSOPManufacturer: Analog Devices Inc.
Categories: DC DC Switching Regulators
Quality Control: Learn More
Buck Switching Regulator IC Positive Adjustable 0.8V 2 Output 800mA 24-TSSOP (0.173"", 4.40mm Width) Exposed Pad
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 24-TSSOP (0.173"", 4.40mm Width) Exposed Pad |
| Output Type | Adjustable |
| Mounting Type | Surface Mount |
| Number of Outputs | 2 |
| Function | Step-Down |
| Current - Output | 800mA |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Output Configuration | Positive |
| Frequency - Switching | 500kHz ~ 2.1MHz |
| Voltage - Input (Max) | 36V |
| Topology | Buck |
| Supplier Device Package | 24-TSSOP |
| Synchronous Rectifier | No |
| Voltage - Output (Max) | 36V |
| Voltage - Input (Min) | 3.8V |
| Voltage - Output (Min/Fixed) | 0.8V |
