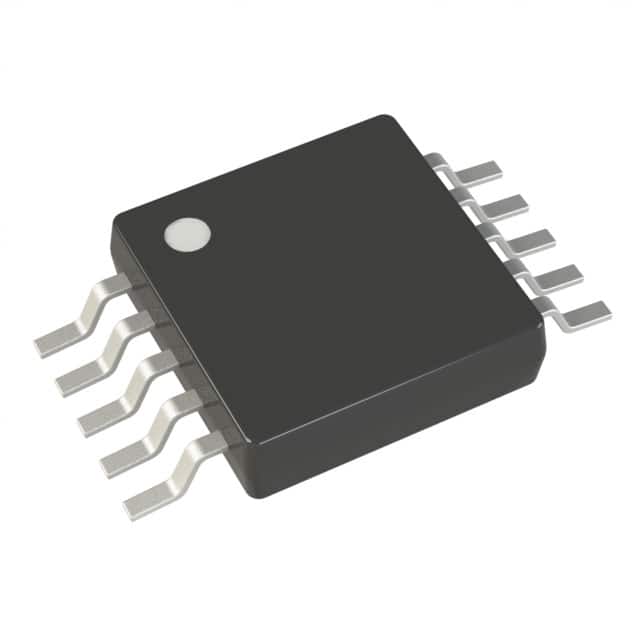

LT3684IMSE#TRPBF
IC REG BUCK ADJ 2A 10MSOPManufacturer: Analog Devices Inc.
Categories: DC DC Switching Regulators
Quality Control: Learn More
Analog Devices Inc. LT3684IMSE-TRPBF is a versatile buck switching regulator designed for high-performance power management applications. This component features an adjustable positive output voltage with a minimum fixed voltage of 1.265V and a maximum output of 20V, capable of delivering up to 2A of current. Its wide input voltage range, from 3.6V to 34V, makes it suitable for diverse power sources. The switching frequency is adjustable from 300kHz to 3MHz, allowing for optimization of component size and efficiency.
The LT3684IMSE-TRPBF utilizes a non-synchronous buck topology and is housed in a 10-MSOP Exposed Pad package, facilitating efficient heat dissipation. It operates within an ambient temperature range of -40°C to 125°C (TJ). This component is commonly employed in industrial control, medical devices, and automotive electronics. The part number LT3684IMSE-TRPBF signifies its 10-MSOP package and Tape & Reel packaging for automated assembly.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 10-TFSOP, 10-MSOP (0.118"", 3.00mm Width) Exposed Pad |
| Output Type | Adjustable |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Function | Step-Down |
| Current - Output | 2A |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Output Configuration | Positive |
| Frequency - Switching | 300kHz ~ 3MHz |
| Voltage - Input (Max) | 34V |
| Topology | Buck |
| Supplier Device Package | 10-MSOP-EP |
| Synchronous Rectifier | No |
| Voltage - Output (Max) | 20V |
| Voltage - Input (Min) | 3.6V |
| Voltage - Output (Min/Fixed) | 1.265V |
