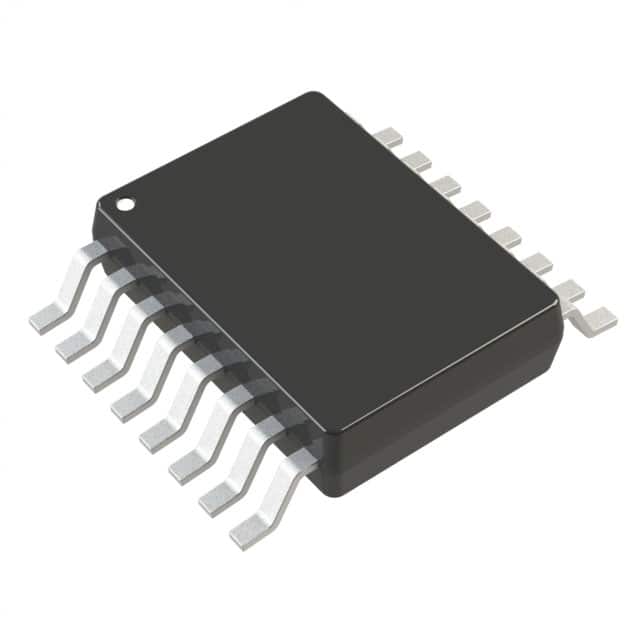

LT3509IMSE#TRPBF
IC REG BUCK ADJ 700MA DL 16MSOPManufacturer: Analog Devices Inc.
Categories: DC DC Switching Regulators
Quality Control: Learn More
Analog Devices Inc. LT3509IMSE-TRPBF is a dual, adjustable output, 700mA buck switching regulator. This component features a wide input voltage range of 3.6V to 36V and offers adjustable output voltages from 0.8V up to 34.2V. The switching frequency is dynamically adjustable from 260kHz to 2.15MHz, enabling optimization for efficiency and component size. With two independent output channels, each capable of delivering 700mA, it is suitable for applications requiring multiple regulated voltage rails. The device is housed in a 16-TFSOP (0.118", 3.00mm Width) Exposed Pad package, designed for surface mounting. Operating across a temperature range of -40°C to 125°C (TJ), this regulator is utilized in various industrial and automotive power management systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 16-TFSOP (0.118"", 3.00mm Width) Exposed Pad |
| Output Type | Adjustable |
| Mounting Type | Surface Mount |
| Number of Outputs | 2 |
| Function | Step-Down |
| Current - Output | 700mA |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Output Configuration | Positive |
| Frequency - Switching | 260kHz ~ 2.15MHz |
| Voltage - Input (Max) | 36V |
| Topology | Buck |
| Supplier Device Package | 16-MSOP-EP |
| Synchronous Rectifier | No |
| Voltage - Output (Max) | 34.2V |
| Voltage - Input (Min) | 3.6V |
| Voltage - Output (Min/Fixed) | 0.8V |
