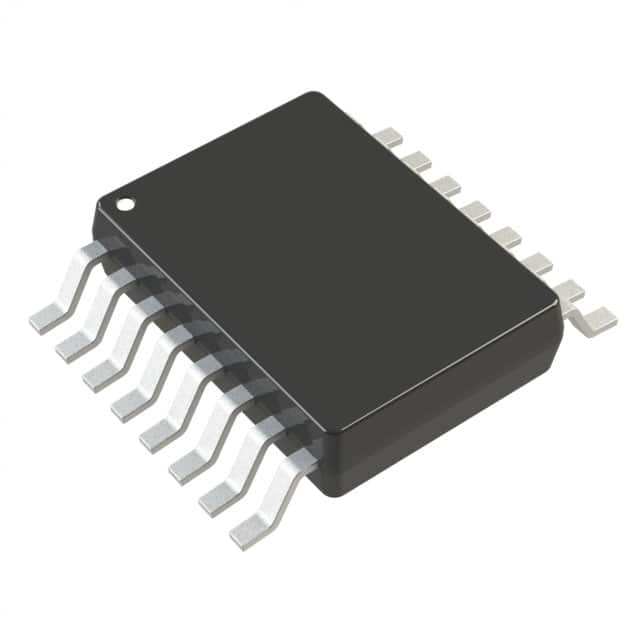

LT3509HMSE#TRPBF
IC REG BUCK ADJ 700MA DL 16MSOPManufacturer: Analog Devices Inc.
Categories: DC DC Switching Regulators
Quality Control: Learn More
The Analog Devices Inc. LT3509HMSE-TRPBF is a dual, current-mode, step-down switching regulator. This device offers two independent output channels, each capable of delivering up to 700mA. The output voltage is adjustable from 0.8V up to 34.2V. It operates with an input voltage range of 3.6V to 36V, featuring a maximum output voltage of 34.2V. The switching frequency is configurable between 260kHz and 2.15MHz, enabling optimization for efficiency and component size. This buck regulator is designed for surface mounting in a 16-MSOP-EP package. Key applications include battery-powered systems, portable instrumentation, and power management in industrial equipment. The operating temperature range is -40°C to 150°C (TJ).
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 16-TFSOP (0.118"", 3.00mm Width) Exposed Pad |
| Output Type | Adjustable |
| Mounting Type | Surface Mount |
| Number of Outputs | 2 |
| Function | Step-Down |
| Current - Output | 700mA |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Output Configuration | Positive |
| Frequency - Switching | 260kHz ~ 2.15MHz |
| Voltage - Input (Max) | 36V |
| Topology | Buck |
| Supplier Device Package | 16-MSOP-EP |
| Synchronous Rectifier | No |
| Voltage - Output (Max) | 34.2V |
| Voltage - Input (Min) | 3.6V |
| Voltage - Output (Min/Fixed) | 0.8V |
