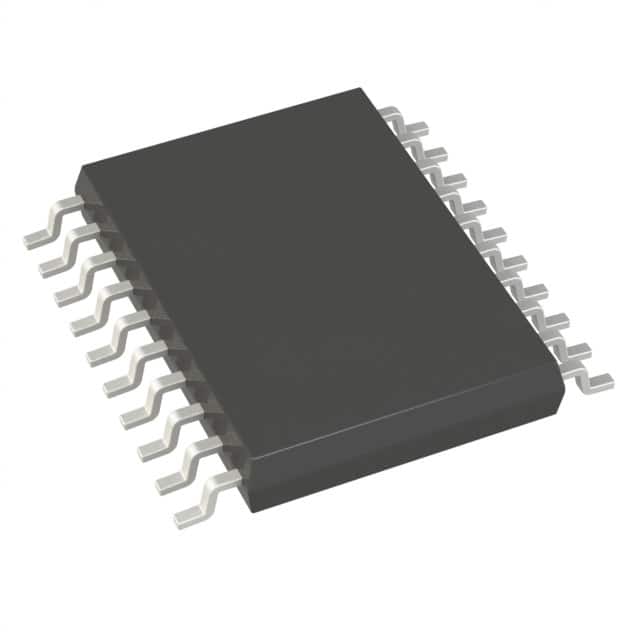

LT3501EFE#TRPBF
IC REG BUCK ADJ 3A DL 20TSSOPManufacturer: Analog Devices Inc.
Categories: DC DC Switching Regulators
Quality Control: Learn More
Buck Switching Regulator IC Positive Adjustable 0.8V 2 Output 3A 20-TSSOP (0.173"", 4.40mm Width) Exposed Pad
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 20-TSSOP (0.173"", 4.40mm Width) Exposed Pad |
| Output Type | Adjustable |
| Mounting Type | Surface Mount |
| Number of Outputs | 2 |
| Function | Step-Down |
| Current - Output | 3A |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Output Configuration | Positive |
| Frequency - Switching | 250kHz ~ 1.5MHz |
| Voltage - Input (Max) | 25V |
| Topology | Buck |
| Supplier Device Package | 20-TSSOP-EP |
| Synchronous Rectifier | No |
| Voltage - Output (Max) | 23.75V |
| Voltage - Input (Min) | 3.1V |
| Voltage - Output (Min/Fixed) | 0.8V |
