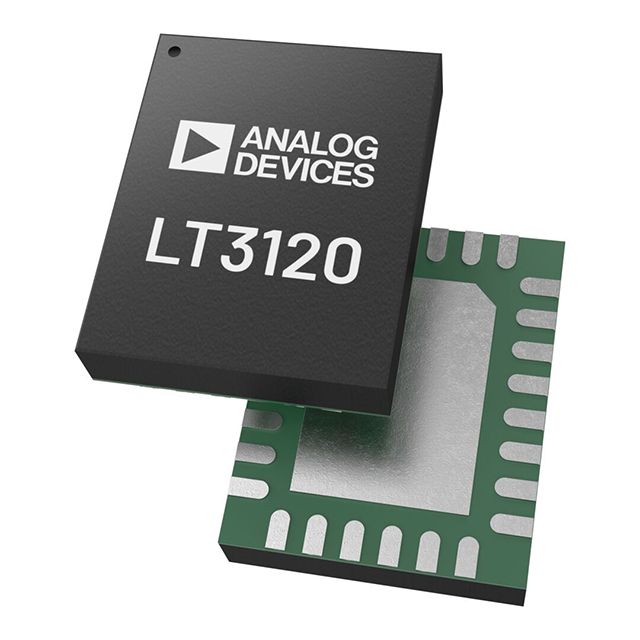

LT3120JV#PBF
IC REG BUCK-BOOST ADJ 9A 28LQFNManufacturer: Analog Devices Inc.
Categories: DC DC Switching Regulators
Quality Control: Learn More
Buck-Boost Switching Regulator IC Positive Adjustable 0.8V 1 Output 9A 28-VFQFN Exposed Pad
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 28-VFQFN Exposed Pad |
| Output Type | Adjustable |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Function | Step-Up/Step-Down |
| Current - Output | 9A |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Output Configuration | Positive |
| Frequency - Switching | 400kHz ~ 2MHz |
| Voltage - Input (Max) | 26V |
| Topology | Buck-Boost |
| Supplier Device Package | 28-LQFN (5x4) |
| Synchronous Rectifier | No |
| Voltage - Output (Max) | 24V |
| Voltage - Input (Min) | 2.5V |
| Voltage - Output (Min/Fixed) | 0.8V |
Request a Quote
