LT1424IN8-5#PBF

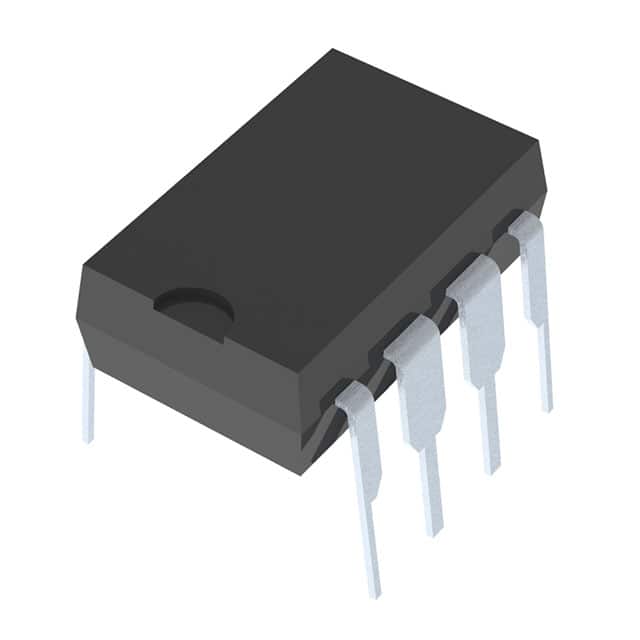

IC REG FLYBACK 5V 400MA 8DIPManufacturer: Analog Devices Inc.
Categories: DC DC Switching Regulators
Quality Control: Learn More
Analog Devices Inc. LT1424IN8-5-PBF is a flyback switching regulator IC designed for applications requiring regulated DC voltage. This component offers a fixed 5V output with a maximum output current of 400mA and is capable of both positive and negative output configurations, supporting isolation. The device operates with an input voltage range from 2.8V to 20V and features a switching frequency of 285kHz. Its topology is flyback, and it is not a synchronous rectifier. The LT1424IN8-5-PBF is housed in an 8-DIP (0.300", 7.62mm) package suitable for through-hole mounting. This component finds application in power management within industrial, medical, and consumer electronics sectors where isolated power supplies are critical. The operating temperature range is -40°C to 125°C (TJ).
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 20 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 8-DIP (0.300"", 7.62mm) |
| Output Type | Fixed |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Function | Step-Up/Step-Down |
| Current - Output | 400mA |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Output Configuration | Positive or Negative, Isolation Capable |
| Frequency - Switching | 285kHz |
| Voltage - Input (Max) | 20V |
| Topology | Flyback |
| Supplier Device Package | 8-PDIP |
| Synchronous Rectifier | No |
| Voltage - Output (Max) | - |
| Voltage - Input (Min) | 2.8V |
| Voltage - Output (Min/Fixed) | 5V |
Request a Quote
