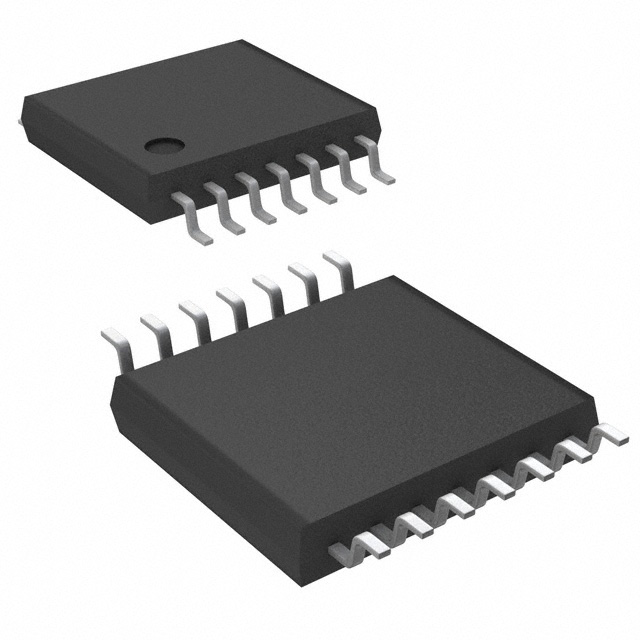

LT1308ACF
IC REG BST SEPIC ADJ 2A 14TSSOPManufacturer: Analog Devices Inc.
Categories: DC DC Switching Regulators
Quality Control: Learn More
Analog Devices Inc. LT1308ACF is a versatile boost, SEPIC switching regulator IC. This component supports adjustable positive output voltages, with a minimum fixed output of 1.22V and a maximum output of 34V. It is designed for input voltages ranging from 1V to 10V. The LT1308ACF can deliver an output current of 2A (switch) and operates at a switching frequency of 600kHz. This device is suitable for applications requiring step-up or step-up/step-down voltage conversion. The package is a 14-TSSOP with a 0.173" (4.40mm) width, designed for surface mounting. It is typically utilized in the industrial, medical, and telecommunications sectors.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 14-TSSOP (0.173"", 4.40mm Width) |
| Output Type | Adjustable |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Function | Step-Up, Step-Up/Step-Down |
| Current - Output | 2A (Switch) |
| Output Configuration | Positive |
| Frequency - Switching | 600kHz |
| Voltage - Input (Max) | 10V |
| Topology | Boost, SEPIC |
| Supplier Device Package | 14-TSSOP |
| Synchronous Rectifier | No |
| Voltage - Output (Max) | 34V |
| Voltage - Input (Min) | 1V |
| Voltage - Output (Min/Fixed) | 1.22V |
