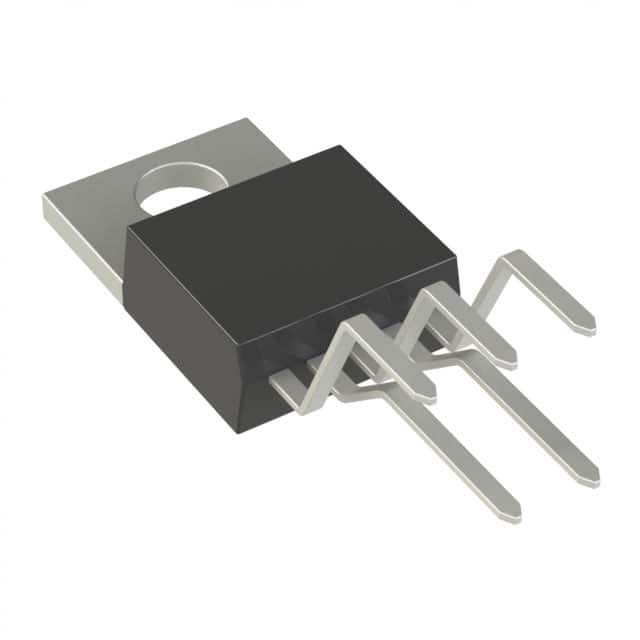

LT1269CT#PBF
IC REG MULT CONFIG ADJ 4A TO220Manufacturer: Analog Devices Inc.
Categories: DC DC Switching Regulators
Quality Control: Learn More
The Analog Devices Inc. LT1269CT-PBF is a highly versatile switching regulator IC designed for efficient power conversion. This component supports multiple topologies including Buck, Boost, Buck-Boost, and Flyback configurations, offering flexibility for diverse power supply designs. It provides an adjustable output voltage ranging from 1.244V up to 60V (switch) with a maximum output current of 4A (switch). With an input voltage range of 3.5V to 30V and a switching frequency of 100kHz, the LT1269CT-PBF is suitable for applications requiring precise voltage regulation. The TO-220-5 package allows for through-hole mounting, and its operating temperature range is 0°C to 100°C (TA). This device finds applications in industrial control, medical equipment, and telecommunications infrastructure.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 39 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | TO-220-5 |
| Output Type | Adjustable |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Function | Step-Up, Step-Down, Step-Up/Step-Down |
| Current - Output | 4A (Switch) |
| Operating Temperature | 0°C ~ 100°C (TA) |
| Output Configuration | Positive or Negative |
| Frequency - Switching | 100kHz |
| Voltage - Input (Max) | 30V |
| Topology | Buck, Boost, Buck-Boost, Flyback |
| Supplier Device Package | TO-220-5 |
| Synchronous Rectifier | No |
| Voltage - Output (Max) | 60V (Switch) |
| Voltage - Input (Min) | 3.5V |
| Voltage - Output (Min/Fixed) | 1.244V |
