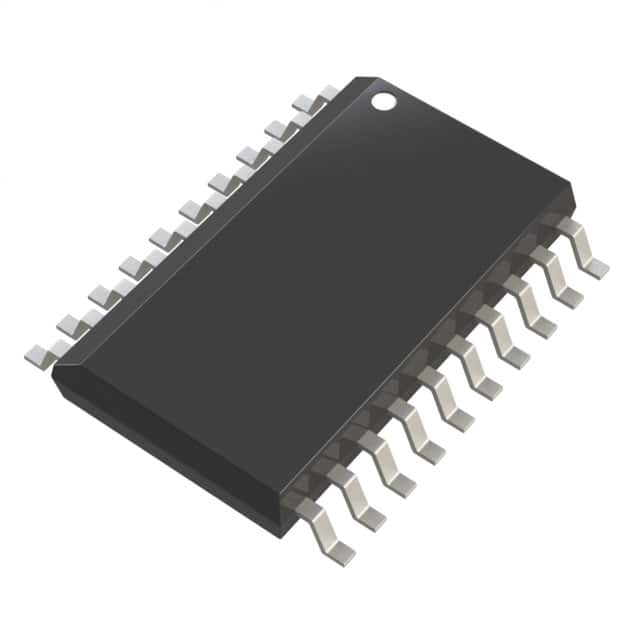

LT1269CSW#PBF
IC REG MULT CONFIG ADJ 4A 20SOManufacturer: Analog Devices Inc.
Categories: DC DC Switching Regulators
Quality Control: Learn More
The Analog Devices Inc. LT1269CSW-PBF is a versatile switching regulator IC supporting buck, boost, buck-boost, and flyback topologies. This component features an adjustable output voltage, configurable for either positive or negative rail generation, with a minimum fixed voltage of 1.244V and a maximum output capability of 60V (switch). It is designed to deliver up to 4A of switch current and operates at a switching frequency of 100kHz. The LT1269CSW-PBF accepts input voltages ranging from 3.5V to 30V. Packaged in a 20-SOIC (0.295", 7.50mm width) surface-mount configuration, this device is suitable for applications across industrial, telecommunications, and consumer electronics sectors requiring flexible power conversion. The operating temperature range is 0°C to 100°C (TA).
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 20-SOIC (0.295"", 7.50mm Width) |
| Output Type | Adjustable |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Function | Step-Up, Step-Down, Step-Up/Step-Down |
| Current - Output | 4A (Switch) |
| Operating Temperature | 0°C ~ 100°C (TA) |
| Output Configuration | Positive or Negative |
| Frequency - Switching | 100kHz |
| Voltage - Input (Max) | 30V |
| Topology | Buck, Boost, Buck-Boost, Flyback |
| Supplier Device Package | 20-SO |
| Synchronous Rectifier | No |
| Voltage - Output (Max) | 60V (Switch) |
| Voltage - Input (Min) | 3.5V |
| Voltage - Output (Min/Fixed) | 1.244V |
