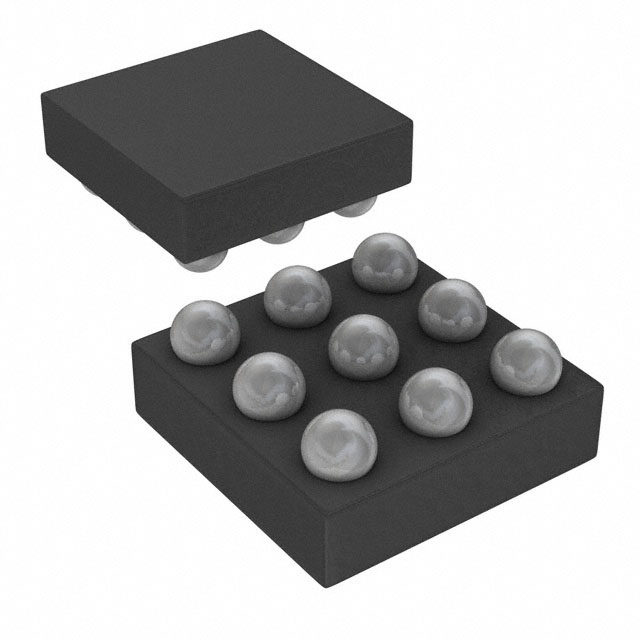

ADP5301ACBZ-3-R7
IC REG BUCK PROG 0.8V 9WLCSPManufacturer: Analog Devices Inc.
Categories: DC DC Switching Regulators
Quality Control: Learn More
Buck Switching Regulator IC Positive Programmable 0.8V 1 Output 50mA, 500mA 9-WFBGA, WLCSP
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 13 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 9-WFBGA, WLCSP |
| Output Type | Programmable |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Function | Step-Down |
| Current - Output | 50mA, 500mA |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Output Configuration | Positive |
| Frequency - Switching | 2MHz |
| Voltage - Input (Max) | 6.5V |
| Topology | Buck |
| Supplier Device Package | 9-WLCSP (1.87x1.65) |
| Synchronous Rectifier | Yes |
| Voltage - Output (Max) | 5V |
| Voltage - Input (Min) | 2.15V |
| Voltage - Output (Min/Fixed) | 0.8V |
Request a Quote
