ADP5076ACBZ-R7
IC REG BOOST ADJ DL 20WLCSPManufacturer: Analog Devices Inc.
Categories: DC DC Switching Regulators
Quality Control: Learn More
Boost Switching Regulator IC Positive and Negative Adjustable 0.8V 2 Output 2A (Switch), 1.2A (Switch) 20-UFBGA, WLCSP
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |

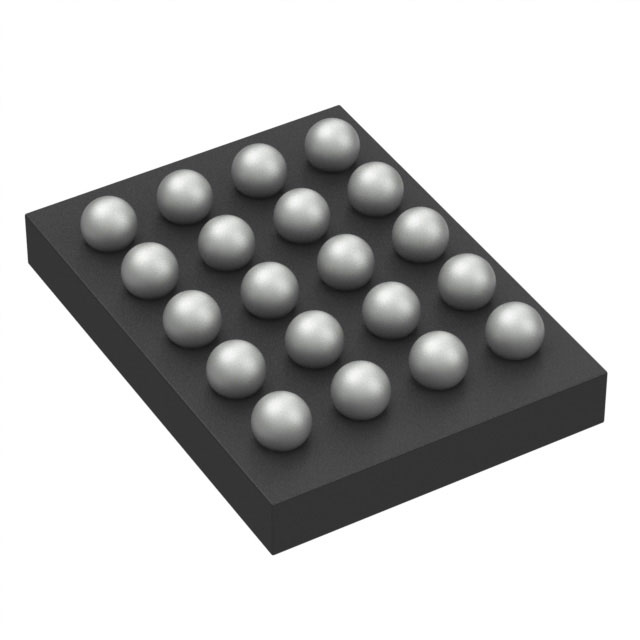

| Package / Case | 20-UFBGA, WLCSP |
| Output Type | Adjustable |
| Mounting Type | Surface Mount |
| Number of Outputs | 2 |
| Function | Step-Up |
| Current - Output | 2A (Switch), 1.2A (Switch) |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Output Configuration | Positive and Negative |
| Frequency - Switching | 1.2MHz, 2.4MHz |
| Voltage - Input (Max) | 5.5V |
| Topology | Boost |
| Supplier Device Package | 20-WLCSP (1.61x2.18) |
| Synchronous Rectifier | Yes |
| Voltage - Output (Max) | 35V, -30V |
| Voltage - Input (Min) | 2.85V |
| Voltage - Output (Min/Fixed) | 0.8V |
