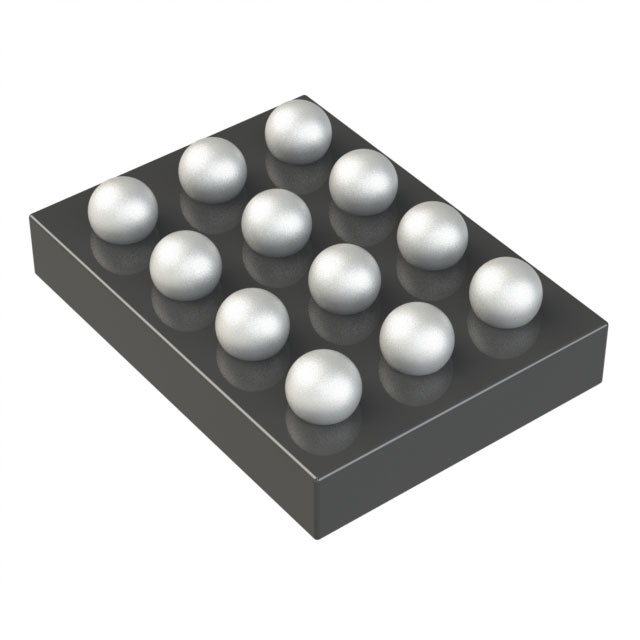

ADP5075ACBZ-R7
IC REG BCK BST ADJ 800MA 12WLCSPManufacturer: Analog Devices Inc.
Categories: DC DC Switching Regulators
Quality Control: Learn More
Buck-Boost Switching Regulator IC Negative Adjustable Vin-39V 1 Output 800mA 12-UFBGA, WLCSP
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 12-UFBGA, WLCSP |
| Output Type | Adjustable |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Function | Ratiometric, Step-Up/Step-Down |
| Current - Output | 800mA |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Output Configuration | Negative |
| Frequency - Switching | 1.2MHz, 2.4MHz |
| Voltage - Input (Max) | 15V |
| Topology | Buck-Boost |
| Supplier Device Package | 12-WLCSP (1.61x2.18) |
| Synchronous Rectifier | No |
| Voltage - Output (Max) | - |
| Voltage - Input (Min) | 2.85V |
| Voltage - Output (Min/Fixed) | Vin-39V |
