ADP5070ACPZ-R7
IC REG BST SEPIC ADJ DL 20LFCSPManufacturer: Analog Devices Inc.
Categories: DC DC Switching Regulators
Quality Control: Learn More
Boost, SEPIC Switching Regulator IC Positive and Negative (Dual Rail) Adjustable 0.8V, 1.6V 2 Output 600mA, 1A 20-WFQFN Exposed Pad, CSP
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |

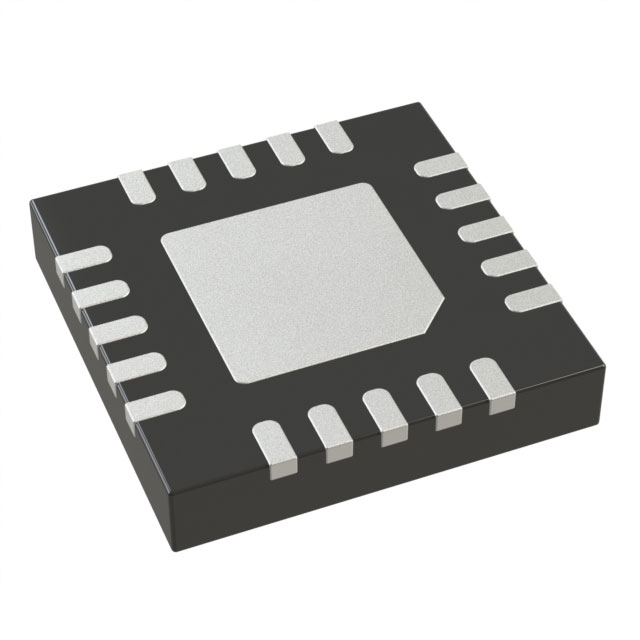

| Package / Case | 20-WFQFN Exposed Pad, CSP |
| Output Type | Adjustable |
| Mounting Type | Surface Mount |
| Number of Outputs | 2 |
| Function | Step-Up, Step-Up/Step-Down |
| Current - Output | 600mA, 1A |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Output Configuration | Positive and Negative (Dual Rail) |
| Frequency - Switching | 1.2MHz, 2.4MHz |
| Voltage - Input (Max) | 15V |
| Topology | Boost, SEPIC |
| Supplier Device Package | 20-LFCSP (4x4) |
| Synchronous Rectifier | No |
| Voltage - Output (Max) | ±39V |
| Voltage - Input (Min) | 2.85V |
| Voltage - Output (Min/Fixed) | 0.8V, 1.6V |
Request a Quote
