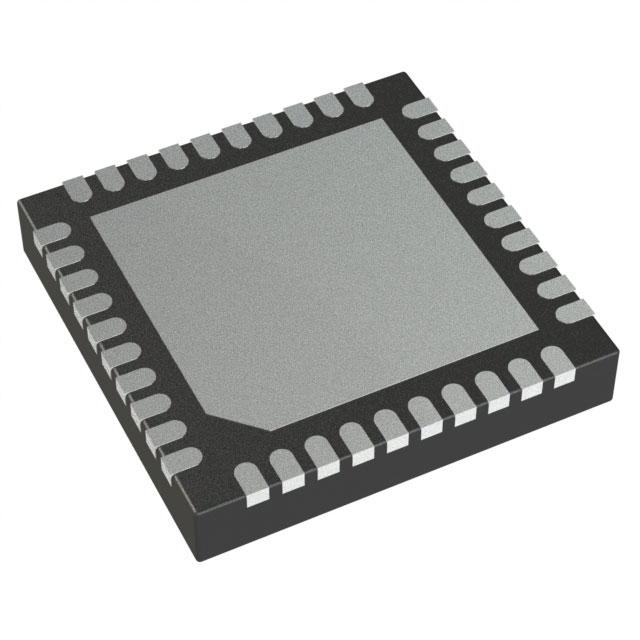

ADP5014ACPZ-R7
IC REG BUCK PROG QUAD 40LFCSPManufacturer: Analog Devices Inc.
Categories: DC DC Switching Regulators
Quality Control: Learn More
Buck Switching Regulator IC Positive Programmable 0.5V 4 Output 2A, 4A, 1A, 2A 40-WFQFN Exposed Pad, CSP
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 20 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 40-WFQFN Exposed Pad, CSP |
| Output Type | Programmable |
| Mounting Type | Surface Mount |
| Number of Outputs | 4 |
| Function | Step-Down |
| Current - Output | 2A, 4A, 1A, 2A |
| Operating Temperature | -40°C ~ 125°C |
| Output Configuration | Positive |
| Frequency - Switching | 500kHz ~ 2.5MHz |
| Voltage - Input (Max) | 6V |
| Topology | Buck |
| Supplier Device Package | 40-LFCSP-WQ (6x6) |
| Synchronous Rectifier | No |
| Voltage - Output (Max) | 4.5V |
| Voltage - Input (Min) | 2.75V |
| Voltage - Output (Min/Fixed) | 0.5V |
