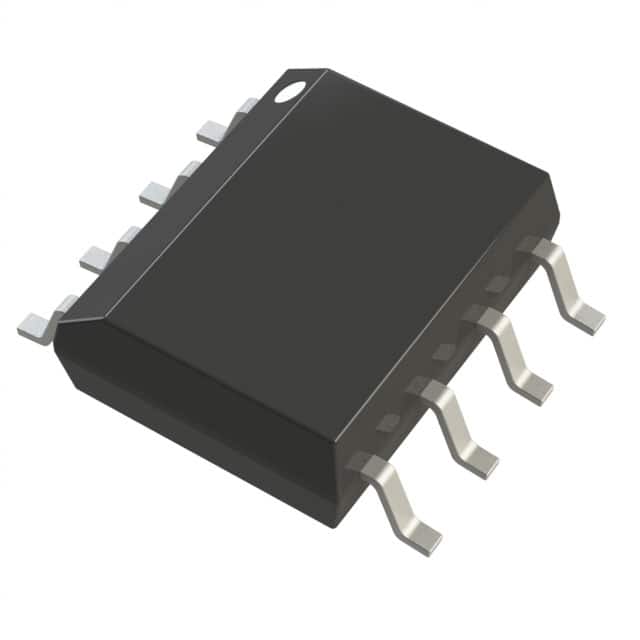

ADP2303ARDZ-5.0
IC REG BUCK 5V 3A 8SOICManufacturer: Analog Devices Inc.
Categories: DC DC Switching Regulators
Quality Control: Learn More
The Analog Devices Inc. ADP2303ARDZ-5-0 is a fixed 5V, 3A buck switching regulator designed for efficient step-down voltage conversion. This component, part of the ADP2303 series, features a 700kHz switching frequency and a single positive output configuration. It is housed in an 8-SOIC Exposed Pad package, suitable for surface mount applications. Operating across a wide input voltage range of 3V to 20V, this device is well-suited for applications in consumer electronics, industrial automation, and power management systems. The ADP2303ARDZ-5-0 offers a reliable solution for demanding power supply requirements within its -40°C to 125°C operating temperature range.
Additional Information
Series: ADP2303RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 8-SOIC (0.154"", 3.90mm Width) Exposed Pad |
| Output Type | Fixed |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Function | Step-Down |
| Current - Output | 3A |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Output Configuration | Positive |
| Frequency - Switching | 700kHz |
| Voltage - Input (Max) | 20V |
| Topology | Buck |
| Supplier Device Package | 8-SOIC-EP |
| Synchronous Rectifier | No |
| Voltage - Output (Max) | - |
| Voltage - Input (Min) | 3V |
| Voltage - Output (Min/Fixed) | 5V |
Request a Quote
