ADP2121ACBZ-2.3-R7
IC REG BUCK 2.3V 600MA 6WLCSPManufacturer: Analog Devices Inc.
Categories: DC DC Switching Regulators
Quality Control: Learn More
Analog Devices Inc. ADP2121ACBZ-2-3-R7 is a high-performance, synchronous buck regulator designed for efficient power conversion. This fixed 2.3V output device delivers up to 600mA of current, operating with a high switching frequency of 6MHz to enable the use of small external components. The IC features a compact 6-WLCSP package, ideal for space-constrained applications. Its input voltage range spans from 2.9V to 5.5V, making it suitable for battery-powered devices and other portable electronics. The device's advanced architecture, including a synchronous rectifier, contributes to high efficiency across a range of load conditions. Applications for this component include mobile devices, portable instrumentation, and point-of-load power management in various industrial and consumer electronics sectors. The component is supplied in a Tape & Reel (TR) package.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |

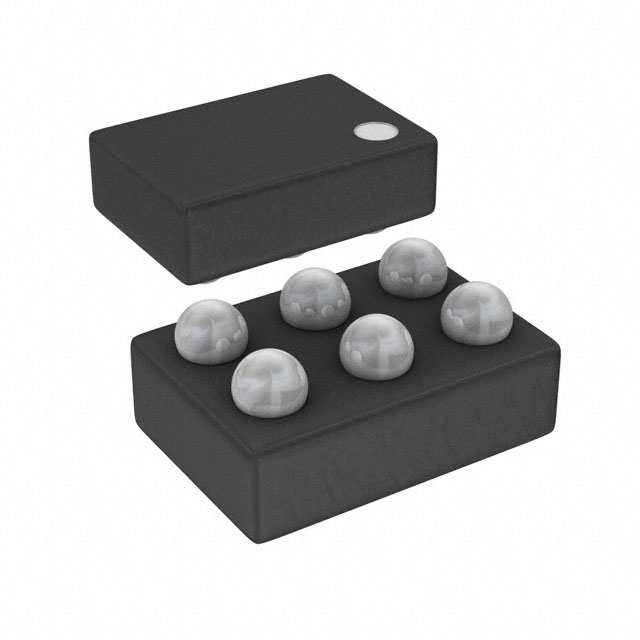

| Package / Case | 6-WFBGA, WLCSP |
| Output Type | Fixed |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Function | Step-Down |
| Current - Output | 600mA |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Output Configuration | Positive |
| Frequency - Switching | 6MHz |
| Voltage - Input (Max) | 5.5V |
| Topology | Buck |
| Supplier Device Package | 6-WLCSP (0.9x1.3) |
| Synchronous Rectifier | Yes |
| Voltage - Output (Max) | - |
| Voltage - Input (Min) | 2.9V |
| Voltage - Output (Min/Fixed) | 2.3V |
Request a Quote
