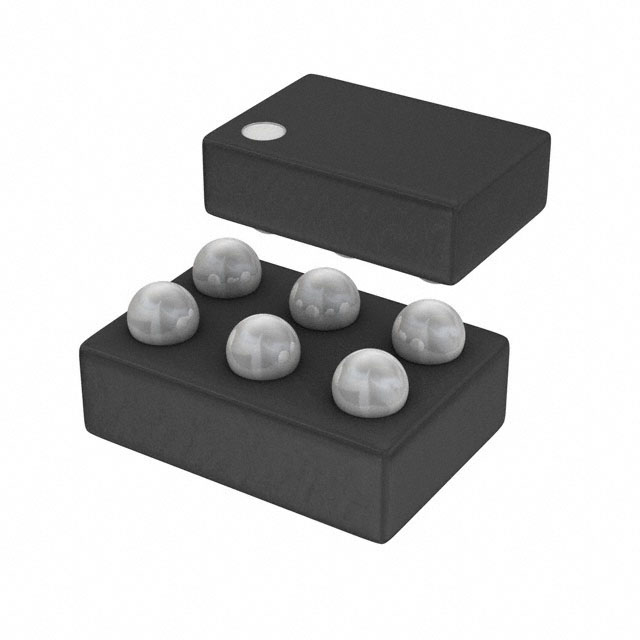

ADP2121ACBZ-1.82R7
IC REG BUCK 1.82V 600MA 6WLCSPManufacturer: Analog Devices Inc.
Categories: DC DC Switching Regulators
Quality Control: Learn More
Analog Devices Inc. ADP2121ACBZ-1-82R7 is a highly efficient, buck switching regulator designed for step-down conversion. This fixed 1.82V output device delivers 600mA with a single positive output configuration. Operating at a high switching frequency of 6MHz, it utilizes a synchronous buck topology for optimized power conversion. The ADP2121ACBZ-1-82R7 is housed in a compact 6-WLCSP package, suitable for surface mount applications. Its input voltage range spans from 2.3V to 5.5V, making it suitable for a variety of portable and battery-powered systems. This component finds application in sectors such as consumer electronics, industrial automation, and wireless communication. The device is supplied on a Tape & Reel (TR) for automated assembly.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 6-WFBGA, WLCSP |
| Output Type | Fixed |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Function | Step-Down |
| Current - Output | 600mA |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Output Configuration | Positive |
| Frequency - Switching | 6MHz |
| Voltage - Input (Max) | 5.5V |
| Topology | Buck |
| Supplier Device Package | 6-WLCSP (0.9x1.3) |
| Synchronous Rectifier | Yes |
| Voltage - Output (Max) | - |
| Voltage - Input (Min) | 2.3V |
| Voltage - Output (Min/Fixed) | 1.82V |
