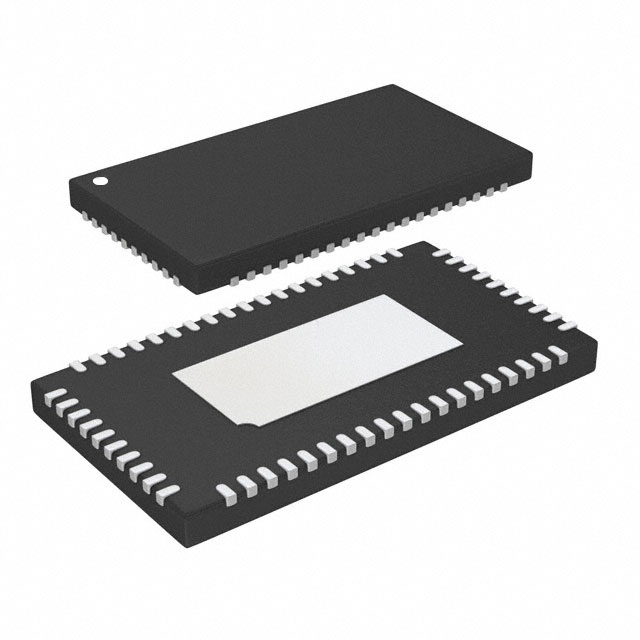

LTC7851IUHH-1#TRPBF
IC REG CTRLR BUCK 58QFNManufacturer: Analog Devices Inc.
Categories: DC DC Switching Controllers
Quality Control: Learn More
Buck Regulator Positive Output Step-Down DC-DC Controller IC 58-QFN (5x9)
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 58-WFQFN Exposed Pad |
| Output Type | PWM Signal |
| Mounting Type | Surface Mount |
| Function | Step-Down |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Output Configuration | Positive |
| Frequency - Switching | 250kHz ~ 3MHz |
| Topology | Buck |
| Voltage - Supply (Vcc/Vdd) | 3V ~ 5.5V |
| Supplier Device Package | 58-QFN (5x9) |
| Synchronous Rectifier | No |
| Control Features | Current Limit, Enable, Frequency Control, Power Good, Soft Start, Tracking |
| Serial Interfaces | - |
| Output Phases | 1 |
| Duty Cycle (Max) | 91.5% |
| Clock Sync | No |
| Number of Outputs | 4 |
Request a Quote
